Description

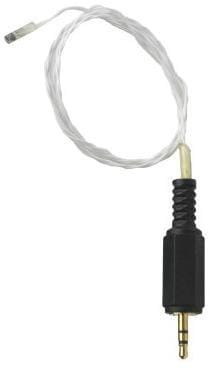

Tinytalk PB-5005-0M6 Probe is a Small and Highly Flexible Probe designed to work with the TinyTalk 2 TK-4023 data logger. Ideal for use in confined and hard to reach locations, for example environmental or pipe-work monitoring where a fast response is required. Typical 10 second response time in water and food grade material construction. Temperature range -40 to 125°C (-40 to +257°F).
| Physical Specifications | Sensor Specifications | ||
| IP Rating: | IP67 (Waterproof) | Sensor Type: | 10K NTC Thermistor |
| Weight: | 5g | Measuring Range: | -40 to 125°C (-40 to +257°F) |

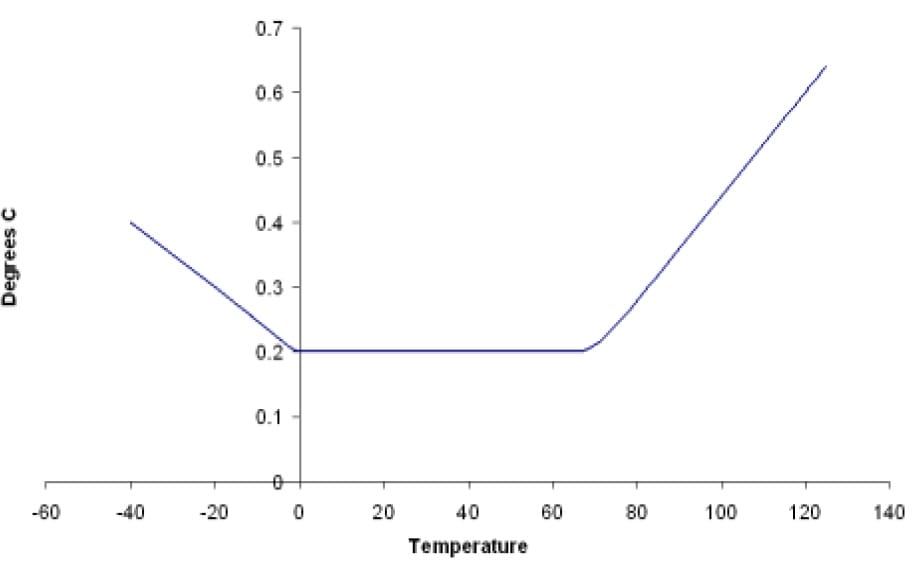

| Response Time Water: | 10 Seconds (to 90% FSD) | Sensor Accuracy: | |
| Sensor Material: | Epoxy |  |
|
| Sensor Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Cable Material: | PTFE | ||
| Cable Temperature Rating: | -40 to +125°C (-40 to +257°F) | ||
| Connector Material: | Food Grade Silicone | ||
| Connector Temperature Rating: | -40 to 85°C (-40 to 185°F) | ||

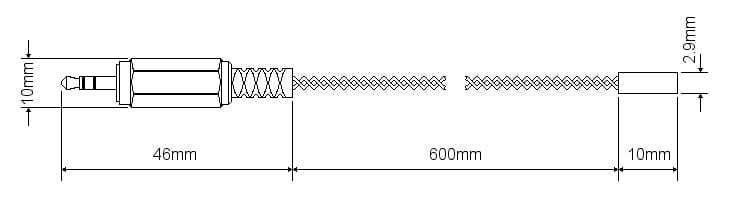

PB-5005 Dimensional Drawing
This probe is suitable for use with the following products:
| Tinytag Talk 2 model number: | TK-4023 |
The Tinytag Talk TK-4023-PK data loggers are supplied as standard with the PB-5005-0M6 Thermistor probe but additional probes are available separately for direct replacement without the need for adjustments. The TK-4023-PK is available below, or from the main Tinytag Talk 2 data loggers page.
