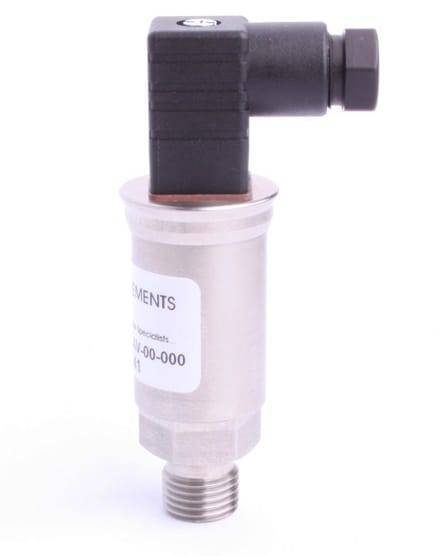

The PA600 series of industrial pressure sensors are suitable for measuring gas and liquid pressures across a wide range of general purpose and industrial applications. The standard the PA600 comes with: Viton O-ring, 303 stainless steel case, ceramic diaphragm (96% Aluminium Oxide Al2O3) and a ¼”BSP male process connection, but various standard options are available. The PA600 series provides a wide choice of electrical outputs from its ASIC-based amplifier circuit, these include 4-20mA, 0-5V, 0-10V, various mV/V, as well as a ratiometric 0.5-4.5vDC (10% to 90% of supply voltage) signal that requires a 5V (2.7 – 5.5vDC acceptable).
PA600-LR Series covers low range pressure ranges for up to 450mBar.
The PA600 series of pressure sensors has been engineered for the measurement of liquid and gas pressures in a diverse range of industrial and specialised applications, including:- Hydraulics, Pneumatics, Agriculture, Marine, Sewage, Gas, Medical, Chemical, Food Processing, Barometers, Data loggers etc.
| Specifications – PA600 Pressure Transmitter / Transducer | |
| Pressure Ranges (Bar) | 0.5, 1, 2, 5, 10, 20 , 50, 100, 250, 400, 600 and 700. |
| Output types | 2mV/V, 10mV/V, 20mV/V, 0.5-4.5V, 0-5V, 0-10V, 4-20mA |
| Power supply | mV input – 2-32V, 0.5-4.5V – 5V, 0-5V – 8-32V, 0-10V & 4-20mA 13-32V |
| Accuracy | <±0.25% (<±0.1% optional) of full scale output |
| Temperature range | Compensated +20 to +80°C |
| Temperature Effect | Span = < -0.015% of output per °C , zero = <0.04% of output per °C |
| Zero = <0.04% of output per °C ( <0.02 or <0.01 optional ) | |
| Media Compatibility | Oil, water, seawater, air, gases, any media compatible with 316 St.St. and Alumina Ceramic |
| Weight | 100 grams |
| I.P Rating | IP65 (IP68 optional) |
