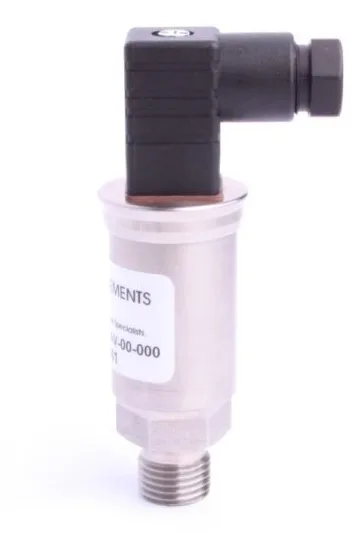

PA600B Barometric Pressure Transmitter

PA600B Barometric Pressure Transmitter

The PA600 series barometric pressure transmitter has a set range of 0.75 – 1.25 Bar absolute. It is available with 4-20mA 0-5V, 0-10V, a ratiometric 0.5 – 4.5V or 2mV/V outputs The unit has a stainless steel body and suitable for long-term installation outdoors.

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PA600B Barometrice Pressure Transmitter

Description

Features

  • Ideal for Weather Applications
  • Robust Construction Stainless Steel with Viton O-Ring
  • Range: 750-1250mbar Absolute
  • Outputs: 4-20mA, 0-5vDC, 0-10vDC, 0.5-4.5vDC or  mV/V
  • Environmental Protection: IP65 (IP67 optional)
  • Accuracy: <±0.25%/FS (<±0.1% optional)
  • Silicon-Based Sensing Element
  • Low Power Consumption

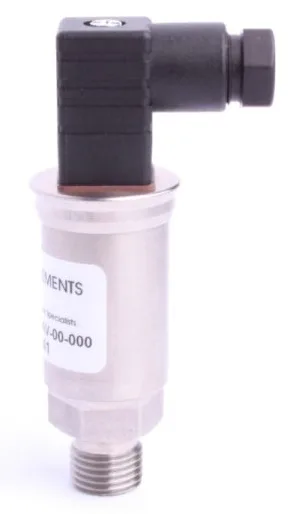

PA600BP Barometric Pressure Sensor

PA642BP-BARO-B4AV-00-000

£233.00

PA Series Barometric Pressure Transducer. Stainless Steel Body and Silicon-Based Sensing Element. Ideal for Atmospheric Pressure Fluctuations with Absolute Pressure Reference. 642B – 2 Wire, 4-20mA Output, Power Supply 9-32vDC. P – Mini DIN Plug & Socket Connection BARO – Barometric Pressure Range, 750-1250mBar Absolute B – Improved Accuracy 0.1% 4 – Temperature Compensation <±0.04%/FS/°C A – ¼” BSP 303 Stainless Steel Male Pressure Connection V – Standard Viton (FKM) O’Rings 00 – No Cable Supplied 000 – No Special Options
MORE INFO
Add to basket
PA645BP Barometric Pressure Sensor

PA645BP-BARO-B4AV-00-000

£233.00

PA Series Barometric Pressure Transducer. Stainless Steel Body and Silicon-Based Sensing Element. Ideal for Atmospheric Pressure Fluctuations with Absolute Pressure Reference. 645B – 3 Wire, 0.5-4.5vDC Output, Power Supply 5vDC P – Mini DIN Plug & Socket Connection BARO – Barometric Pressure Range, 750-1250mBar Absolute B – Improved Accuracy 0.1% 4 – Temperature Compensation <±0.04%/FS/°C A – ¼” BSP 303 Stainless Steel Male Pressure Connection V – Standard Viton (FKM) O’Rings 00 – No Cable Supplied 000 – No Special Options
MORE INFO
Add to basket

CAB4CORESCR-M

£1.50

4 core screened cable (coloured red, blue, green and yellow), 7 x 0.2mm strands, with PVC insulation. Price per metre.
MORE INFO
Add to basket
