£194.20
The PA-699-08 is a differential air pressure sensor with three Dip Switch selectable differential pressure ranges, 0-1,600, 0-2,500 or 0-5,000 Pascal ranges. The sensor will provide a linear 4-20mA current signal that is proportional to the selected differential air pressure range. The PA-699-08 is an ideal solution for monitoring air filter performance or laboratories looking to maintain pressure differentials .
| Accuracy, total of linearity, hysteresis & repeatability (% fs): | ±0.6 | |
| Thermal Effect (typical % fs/10K): | TC zero point | TC sensitivity |
|
PA-699-08
|
±0.01 | ±0.01 |
| Rupture pressure: | 2 x overload at ambient temp. | |
| Power supply: | Current output | 8 to 33vDC |
| Pressure connections: | 6mm i/d push-on tube | |
| Housing: | Polycarbonate PC | |
| Temperature: | Medium & Ambient Storage |
0 to 70°C –10 to +70°C |
| Protection: | IP65 | |
| Dimensions: | 92 x 75 x 51mm | |

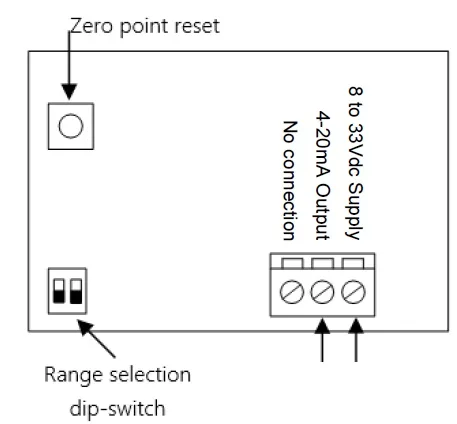

| Dip Switch Setting |  |
Output | ||
|---|---|---|---|---|
| PA-699-08 | 0 to 1,600Pa | 0 to 2,500Pa | 0 to 5,000Pa | 4-20mA |
Duct Fixing KitA duct fixing kit (Part Number DFK) is supplied with the PA-699 units and consists of 2m of 6mm i/d plastic tubing, 2 pitot tubes and 4 x fixing screws.
