Description

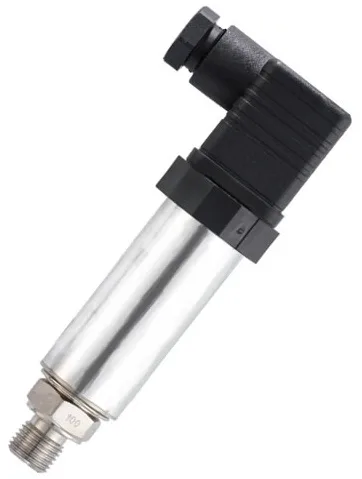

The P642FAX is an ATEX certified, intrinsically safe pressure sensor which has been designed for use in hazardous areas across all common industrial applications. The Titanium media connection allows the sensor to be used with a wide range of harsh and aggressive pressure media,
The P642FAX produces a 4-20mA output in a 2-wire configuration with a DIN 43650 electrical connection. The pressure connection is a standard 1/4″ BSP male connection and a F250C Autoclav fitting for the higher pressure units.
Features
- Pressure ranges 0.5 to 5000 bar
- Sealed to IP65
- Excellent chemical and abrasion resistance
- Rugged construction
- 4-20mA outputs
- Field adjustable output range
- ATEX Certified: II 1 GD EEX ia IIC T4
Specifications
| Supply Voltage: | 13 to 28vDC |
| Output: | 4-20mA |
| Accuracy: | <±0.25 |
| Over Pressure: | Twice range to 3,000 Bar maximum |
| Compensated Range: | -40 to +80°C |
| Operating Range: | -50 to +120°C |
| IP Rating: | IP65 |
