Description
Features
- Pressure Ranges 0-1000 up to 0-5000 Bar
- Environmental Protection IP65, or IP67
- Excellent Chemical and Abrasion Resistance
- Rugged Construction
- Wide Choice of Electrical Outputs
- Field Adjustable output range
- Optional ATEX Certification: Ex II 1 GD EEX ia IIC T4
Specifications
| Version | P610FA | P605FA | P6010FA | P642FA |
| Power Supply | 5-15vDC (regulated) | 13-36vDC (unregulated) | ||
| Output | 10mV/V | 0-5V | 0-10V | 4-20mA |
| Accuracy | <±0.25% of Output | |||
| No. of Wires | 4 | 3 | 2 | |
| Over Pressure | 150% (up to 3,000 Bar), 12% (4,000 Bar) or 120% (5,000 Bar.) | |||
| Media Temperature | -50 to +125°C | |||
| Operating Range | -40 to +85°C | |||

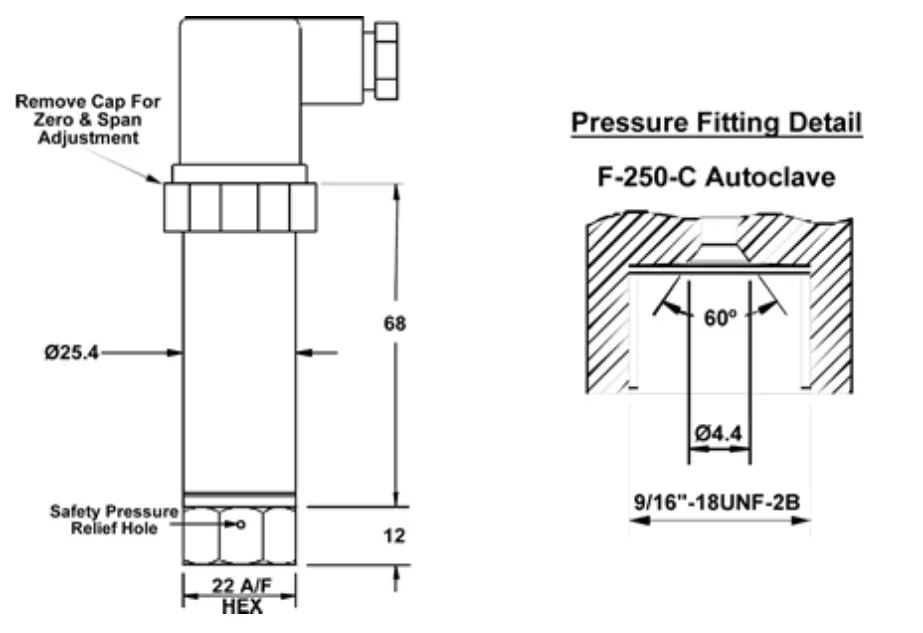

Technical Drawing
