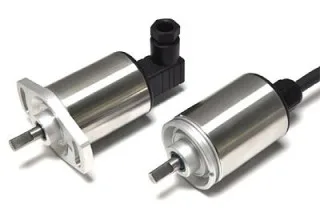

The P500 RIPS (Rotary Inductive Position Sensor) is a durable, affordable, high accuuracy rotary sensor designed for industrial and scientific feedback applications. The P500 is supplied with the output calibrated to the angle required by the customer, between 20 and 160 degrees. The sensor provides a linear output proportional with angle of rotation. There is a machined registration mark to identify the calibrated mid point.
The P500 has a rugged stainless steel body and shaft for long service life and environmental resistance. The mounting flange is anodised aluminium. The sensor is easy to install with flange or servo mounting options, it also offers a wide range of electrical options. Sealing is IP65 or IP67 depending on selected cable or connector options, and full EMC protection built in. It is particularly suitable for OEMs seeking good sensor performance for arduous applications such as industrial machinery where cost is important. Overall performance, repeatability and stability are outstanding over a wide temperature range.
Specifications
| Dimensions | |||
|
Body Diameter
|
35mm | ||
|
Body Length (to seal face)
|
44mm standard, 50mm buffered | ||
|
Shaft
|
15mm, OD 6mm | ||
|
|
For full mechanical details see drawing | ||
|
Measurement range |
Any angle from ±10° to ±80° | ||
|
Independant Linearity |
<±0.25% for 100° | ||
|
Temperature Coefficient |
<±0.01%/°C Gain & <±0.01%FS/°C Offset | ||
|
Typical Overall Accuracy |
<±0.5% FSO | ||
|
Resolution |
Infinite | ||
|
Noise |
<0.02% FSO | ||
|
Shaft Torque |
<20mNm Static | ||
|
Frequency Response |
>10KHz (-3dB); | ||
| >300Hz (-3dB); 2 wire 4-20mA | |||
|
Output Signal and Output Load |
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
Supply Current |
|
||
|
Temperature Limits |
|||
|
Operating |
-40 to +125°C (5V input only) | ||
| -20 to +85°C | |||
|
Storage |
-40 to +125°C | ||
|
EMC Performance |
|||
|
Susceptibility |
EN 61000-6-2 | ||
|
Radiated |
EN 61000-6-3 | ||
|
|
|||
|
Vibration |
IEC 68-2-6: 10g | ||
|
Shock |
IEC 68-2-29: 40 g | ||
|
MTBF |
350,000 hrs 40°C Gf | ||
|
Sealing |
IP65(connector) / IP67(cable) | ||
|
|
|||
|
Electrical Connections |
Screened 3 core cable or integral connector |
