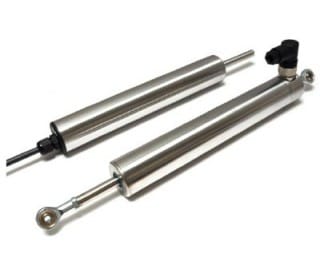

The P101 is a durable, affordable, high accuracy stand alone linear inductive position sensor designed for use in scientific and industrial applications. The P101 is available with any travel from 50mm to 600mm. with 0-5v, 0.5-4.5v and 4-20mA outputs
£0.00
Specification
| Specification | |||
| Dimensions | |||
|
Body Diameter
|
35mm | ||
|
Body Length (Axial Version)
|
Measurement length + 163mm | ||
|
Body Length (Radial Version)
|
Measurement length + 186mm | ||
|
Push Rod Extension
|
Measurement length + 9mm | ||
|
Push Rod Outside Diameter |
9.45mm | ||
|
Travel |
any stroke from 50 mm to 600mm (eg 305mm) | ||
|
Independant Linearity |
<±0.25% up to 450mm <±0.50% over 450mm at 20°C | ||
|
Temperature Coefficient |
<±0.01%/°C Gain & <±0.01%FS/°C Offset | ||
|
Typical Overall Accuracy |
<±0.75%/FSO | ||
|
Resolution |
Infinite | ||
|
Noise |
<0.02% FSO | ||
|
Frequency Response |
>10KHz (-3dB); | ||
| >300Hz (-3dB); 2 wire 4-20mA | |||
|
|
|||
|
Output Signal and Output Load |
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
Supply Current |
|
||
|
|
|||
|
Temperature Limits |
|||
|
Operating |
-40 to +125°C (5V input only) | ||
| -20 to +85°C | |||
|
Storage |
-40 to +125°C | ||
|
EMC Performance |
|||
|
Susceptibility |
EN 61000-6-2 | ||
|
Radiated |
EN 61000-6-3 | ||
|
|
|||
|
Vibration |
IEC 68-2-6: 10g | ||
|
Shock |
IEC 68-2-29: 40 g | ||
|
MTBF |
350,000 hrs 40°C Gf | ||
|
Sealing |
IP65(connector) / IP67(cable) | ||
|
|
|||
|
Electrical Connections |
Screened 3 core cable with 0.25 mm2 conductors or integral connector | ||
|
Detailed Dimensions |
Refer to drawing below. Other options available. | ||
