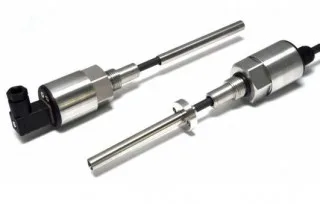

The P100 sensor is an affordable, durable, high accuracy linear position sensors specifically designed for use in hydraulic and pneumatic cylinders where long life and cost are important. The P100 linear sensor is particularly suitable for OEM customers who require good performance in hard environments such as industrial machinery. It is available with strokes up to 600mm with 0-5v, 0.5-4.5v and 4-20mA outputs.
The P100 sensor is an affordable, durable, high accuracy linear position sensors specifically designed for use in hydraulic and pneumatic cylinders where long life and cost are important. The P100 linear sensor is particularly suitable for OEM customers who require good performance in hard environments such as industrial machinery.
| Specification | |||
|
Body Diameter
|
35mm |
||
|
Body Length (to seal face)
|
43mm (5V input) – 48mm (Other inputs) |
||
|
Probe Length (from seal face)
|
Measurement length + 58mm |
||
|
Target Tube Length
|
Measurement length +30mm, ID 7.7mm, OD 9.45mm |
||
|
|
|
||
|
Travel |
any stroke from 20 mm to 600mm (eg 305mm) |
||
|
Independant Linearity |
<±0.25% up to 450mm <±0.50% over 450mm at 20°C |
||
|
Temperature Coefficient |
<±0.01%/°C Gain & <±0.01%FS/°C Offset |
||
|
Typical Overall Accuracy |
<±0.75%/FSO |
||
|
Resolution |
Infinite |
||
|
Noise |
<0.02% FSO |
||
|
Frequency Response |
>10KHz (-3dB); |
||
|
|
>300Hz (-3dB); 2 wire 4-20mA |
||
|
|
|
||
|
Output Signal and Output Load |
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
|
|
||
|
Supply Current |
|
||
|
|
|
||
|
Temperature Limits |
|
||
|
Operating |
-40 to +125°C (5V input only) |
||
|
|
-20 to +85°C |
||
|
Storage |
-40 to +125°C |
||
|
EMC Performance |
|
||
|
Susceptibility |
EN 61000-6-2 |
||
|
Radiated |
EN 61000-6-3 |
||
|
|
|
||
|
Vibration |
IEC 68-2-6: 10g |
||
|
Shock |
IEC 68-2-29: 40 g |
||
|
MTBF |
350,000 hrs 40°C Gf |
||
|
Hydraulic Pressure |
350 Bar |
||
|
Sealing |
IP65(connector) / IP67(cable) |
||
|
|
|
||
|
Electrical Connections |
Screened 3 core cable or integral connector |
||
|
Target |
A non-magnetic target tube is supplied with the sensor. This can be eliminated if the piston rod is made from non-magnetic steel and is drilled to a specified tolerance. |
||
