Description

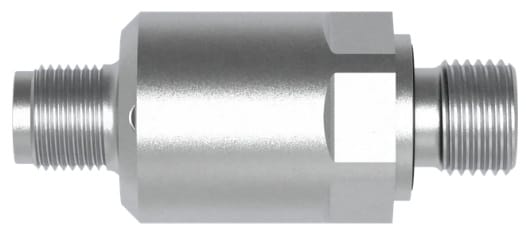

The new P.Trace Pressure sensor combines a ceramic measuring cell with one of the smallest pressure sensor housings available, whilst still remaining a robust, durable sensor. Available with 4-20mA or 10V outputs in a range of different pressure ranges.
Features
- Pressure ranges between 0 and 600 Bar
- Options of 4-20mA, 0-10V or 1-10V analogue outputs
- Available with NBR, FKM or EPDM seals
- M12 connector port for easy electrical connection
- Ideally suitable for continuous industrial applications
General Specifications
| Expected Lifetime | 100 Mio. Load Changes |
|---|---|
| Pressure Type | Relative Pressure |
| Measuring Cell Type | Ceramic Al2O3 96% |
Electrical Specifications
| Electrical Connection | Connector M12x1, 4-Pole |
|---|---|
| Power Supply | 9-30vDC (13-30vDC for Voltage Outputs) |
| Power Consumption [Ub] | <25mA |
| Out 1 (Pin 4) | 0-10V/1-10V/4-20mA |
| Max. Load (Voltage) | 2,000 Ohms |
| Max. Load (4-20mA) | 500Â Ohms |
| Response Time | < 3ms |
| Total Accuracy (23°C) | ±0.5%FS (GP) |
| Max. Temperature Error | ±1.5%FS (<100 Bar); ±2.5% (≥100 Bar) at -25 to 85°C. |
| Long-Term Drift | ≤0.1%FS |
| Repetition Accuracy | 0.1%FS |
