Description

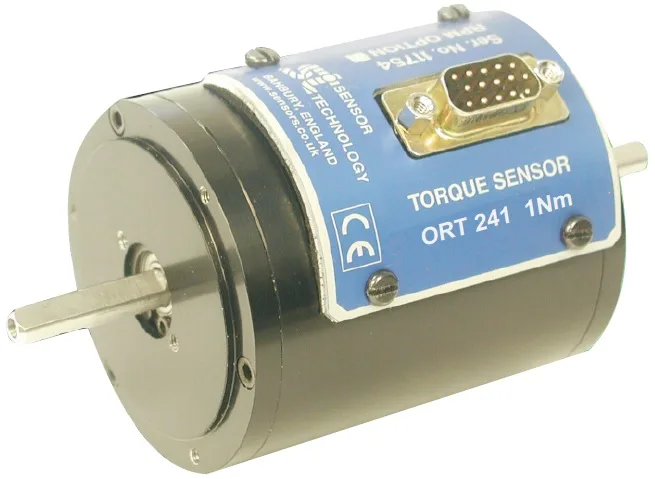

The ORT 230/240 is a transducer designed for accurately measuring torque in both rotating and stationary objects. It’s perfect for applications with torque under 100Nm and those needing quick data capture (up to 50KHz). These models are a direct replacement for the older E200 ORT series, boasting improved electronics and enhancements that deliver better resolution, faster response times, lower energy use, and quicker digital data transfer.

Features

• Non contact/brushless measurement with low inertia and high speed capability
• High Bandwidth (50kHz)
• 200% safe mechanical overload
• Excellent noise immunity

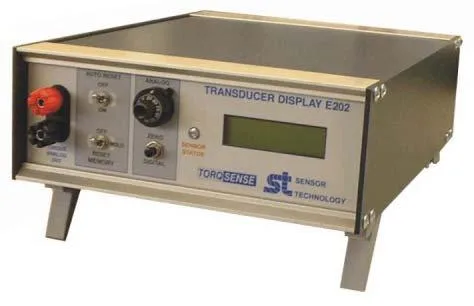

• External digital electronics
• Operates both statically and dynamically
  – clockwise/anti-clockwise
• Any full scale torque can be specified within standard range: 10mNm through to 100Nm
• Lifetime warranty

TorqSense ORT230 Series:

• Fixed voltage or current analogue outputs (one for torque and the other for speed or power) for interfacing with data loggers or displays
• BIT Self-diagnostics for letting the manufacturer know that the transducer’s torque, speed ratings and calibration due date have not been exceeded
• Simple ‘Sensor status’ output pin
• Sensors to monitor shaft temperature for better compensation and accuracy

TorqSense ORT240 Series:

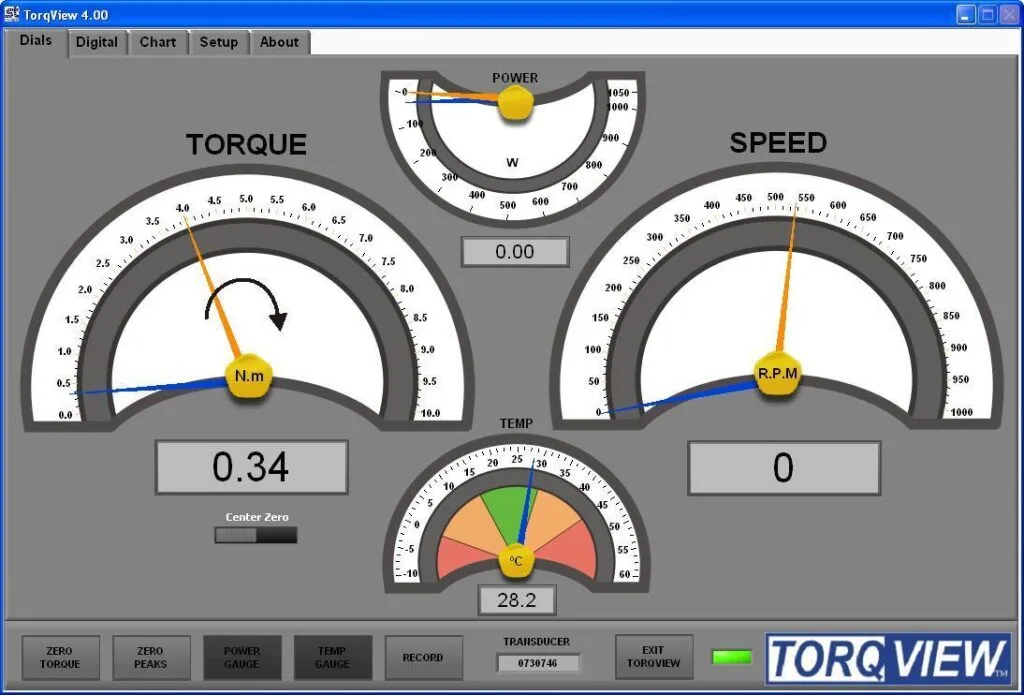

• Digital outputs, such as RS232, CANbus and USB, for interfacing with data loggers or Torqview software running on a laptop or PC.
• Digital input for configuring transducer via PC
• 2 x user selectable voltage or current analogue outputs (one for torque and the other for speed, power or peak torque) for interfacing with analogue instrumentation
• Transducer configuration software to allow user to changes transducer variables
• BIT Self-diagnostics for letting users know data is trustworthy, that the transducer’s torque, speed ratings and calibration due date have not been exceeded
• Simple ‘Sensor status’ output pin
• Sensors to monitor shaft temperature for better compensation and accuracy
• Ability to connect up to 10 transducers using USB
