OQ610-S Through Process Data Logging Systems

OQ610-S Through Process Data Logging Systems

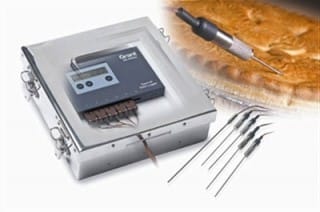

The OQ610-S data logger is suitable for taking up to 6 K or T type thermocouple temperature readings for heat treating products in your manufacturing process. The logger is housed in one of the standard, or custom, thermal barriers for protection for the required process temperature and duration. We can supply a wide range of temperature probes for surface, air or insertion measurements to be taken during the process. Standard barriers can handle temperatures of up to 950°C for up to 3 Hrs.

View Options

Need help finding the right product?

CONTACT US

Description

By passing the OQ610-S data logger – protected by a thermal barrier – through your process, a temperature profile can be produced that will show you exactly what is happening to your products and the process. This provides the benefit allowing you to improve the quality of your product, increase efficiency, reduced energy costs, quality assurance reports for compliance and traceability and complete quality control for your process.

Features

  • Complete system for through process monitoring based on 6-channel Squirrel OQ610
  • High accuracy
  • Compact and simple to use
  • USB connectivity for direct print-out of temperature readings with time and date
  • Can be configured to automatically start and stop logging on time or temperature levels
  • Can provide automatic cure calculation in through process applications
  • Wide choice of temperature probes and thermal barriers



Applications

  • Food Manufacturing including cakes, bread, confectionery, meat fish, poultry, beverages, dairy products, pizza, pasta, ready made meals as well as chilled and frozen foods
  • Surface Coatings; powder coating & stove enamelling
  • Furnaces, kilns and any form of oven or conveyor system



Specification
Analogue input channels
6
Input types:
K or T Type Thermocouples
Temperature measuring range:
-200°C to 1300°C (K type)
-200°C to 400°C (T type)
Max number of readings (per second per channel)
8
Accuracy
-50 to 500°C, ±0.5°C
-200 to 1300°C, ±1.0°C
Resolution
0.1°C
Display
alphanumeric display 2 x 16 characters; shows cure pass/fail, battery status, probes connected, real time readings and communication to printer or PC
Memory size/number of readings stored
0.25Mb
USB communications
√
Power supply
2 x AA cells to give 200 hours operation at default settings
Dimensions and weight (l x w x h)
148 x 95 x 21mm, 450 g
Operating environment
temperature range -30 to 65°C
humidity 95%
Set-up/analysis software
SquirrelView/Plus*
Temperature probes (K or T thermocouple)
Contact us for most suitable sensors
Thermal barriers
Contact us for most suitable sensors



Thermal Barrier

Thermal barriers are insulated containers designed to keep heat out so that the datalogger inside remains at a safe operation temperature for a specified duration. We offer a wide range of thermal barrier with different time and temperature specifications. A list of standard options are detailed below.

Features

  • Provides protection to Squirrel data loggers when used in high temperature oven profiling applications (static or conveyor)
  • A wide range of standard and customised models with different performance characteristics
  • Made from stainless steel, for years of use
  • Suitable for applications in food, powder coating, stove enamelling, ceramic, kiln and furnace
  • Barriers available for very high temperature applications – manufactured to order
  • Can be constructed using special phase change material for added protection for very high temperature applications.



The performance of a thermal barrier is measured in terms of the exposure time at a particular temperature for a given maximum internal temperature. The performance is closely related to the barrier’s insulation thickness. The table below indicates the allowable exposure time (in minutes) of temperatures for the standard (thermal barrier models assuming a maximum internal temperature of 70°C).

Thermal Barrier Specifications for applications up to 500°C

Dimension (mm) Weight Max Duration at Temp
Model W H D Kg 100°C 150°C 200°C 250°C 300°C 500°C
TP-60-OQ 250 320 65 8 120 mins 80 mins 70 mins 60 mins 45 mins N/A
PB-100-OQ 230 300 102 9 150 mins 120 mins 100 mins 80 mins 60 mins 40 mins
PB-135-OQ 230 320 135 10 4.5 Hrs 3.5 Hrs 2.5 Hrs 2 Hrs 1.5 Hr 1 Hr

Thermal Barrier Specifications for applications up to 950°C

Dimensions (mm) Weight Max Duration at Temp
Model W H D Kg 200°C 300°C 500°C 800°C 950°C
TP-105-OQ 340 400 105 13 2.5 Hrs 2 Hrs 55 mins 35 mins 20 mins
TP-130-OQ 360 401 130 16 4 Hrs 3 Hrs 80 mins 50 mins 30 mins
TP-170-OQ 360 410 170 20 7 Hrs 5 Hrs 2.5 Hrs 85 mins 45 mins
TP-220-OQ 400 450 220 25-28 8 Hrs 6 Hrs 2.5 Hrs 100 mins 70 mins
TP-320-OQ 460 520 330 45-50 15 Hrs 12 Hrs 6 Hrs 3.5 Hrs 2 Hrs
TP-400-OQ 500 560 405 65 22 Hrs 15 Hrs 8.5 Hrs 4.5 Hrs 3 Hrs

Custom designed thermal barriers are available on request.

Product

Ref

Price

Product Description
