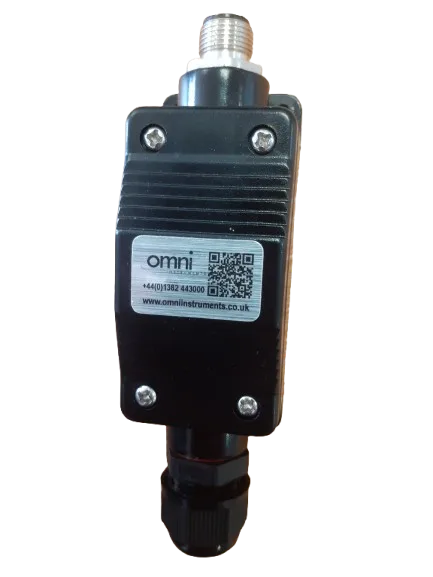

OmniAmp Inline PT100 Transmitter with 4-20mA Output. IP67 Housing with Cable Gland for PT100 Sensor and M12 Connector for signal output.
£90.00
The OmniAmp-RTD-MA transmitter allows easy integration of PT100 sensors into existing networks for communication with PLCs or SCADA systems. The OmniAmp-RTD-MA is configured using SigNow software via a USB interface and two wire loop powered 4-20mA output. Versatile and compact, the OmniAmp-RTD-MA-M12 transmitters are the ideal solution for inline PT100 signal amplifiers with an M12 IP67 connector suitable for any environment.
| Inputs: | Any 3-Wire PT100 Temperature Sensor. 0.8mA Excitation |
| Output: | 2 wire Loop-powered 4-20mA |
| Temperature Range: | -200 to 600°C (-328 to 1,112F) |
| Typical Accuracy: | 0.1 % @ 25°C (77F) |
| Operating Temperature: | -40 to 85°C (-40 to 185F) |
| Power Supply: | 7 to 40vDC, Consumption <10mA |
| Housing Material: | Polyamide, IP67 Rated with Cable Gland and M12 Output Connector |
| Output Connector: | 4-Pin M12 Male Connector, IP67 |
Configuration of the OmniAmp-RTD-MA-M12 is via SigNow software
