Description

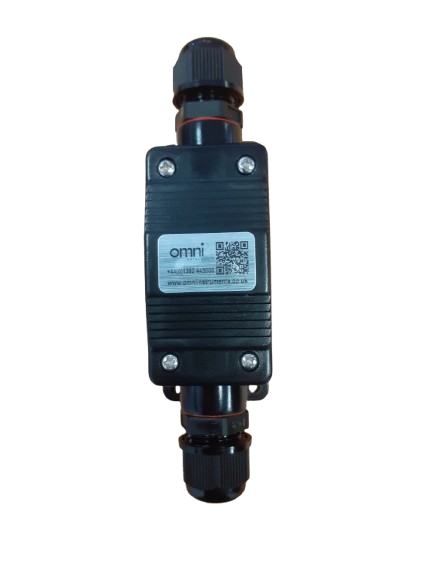

The OmniAmp RTD transmitter allows easy integration of RTD sensors into existing networks for communication with PLCs or SCADA systems. The OmniAmp RTD is configured using software via a USB interface. For the RS485 versions, configuration is also done via Modbus commands, generated automatically from a SCADA system. Versatile and compact, these transmitters are the ideal solution for adapting sensors to any environment.
Specification
| Output: | 4 to 20mA or 20 to 4mA, 2-wire type, loop-powered |
| 2 wire RS485 with Modbus RTU protocol | |
| Inputs: | PT100 or PT1000 for 4-20mA O/P or PT100 for RS485 Output |
| Connection: | 3-wire PT100 or PT1000 |
| Typical accuracy: | 0.1 % @ 25 °C (77 °F) |
| Operating temperature: | -40 to 85 °C (-40 to 185 °F) |
| Housing material: | Polyamide, rated IP 67 with cable gland and M12 output connector |
| Output connector: | M12 4 pin male connector, IP67 |
- Configurable measuring range from -200 to 650 °C (-328 to 1202 °F) for 4-20mA
- Configurable measuring range from -200 to 600 °C (-328 to 1112 °F) for Modbus RS485
- Commissioning via SigNow software with USB-i485 converter or Modbus commands
