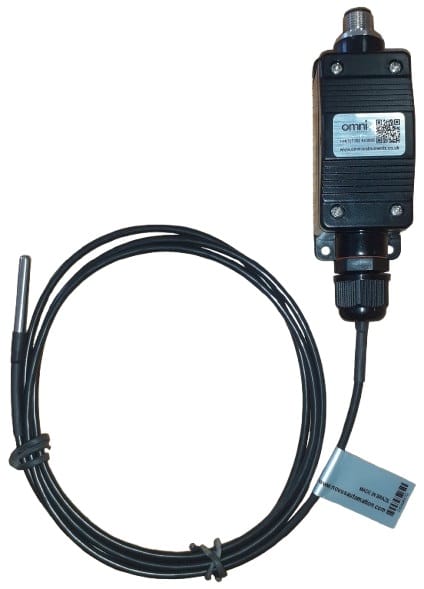

The OmniAmp inline temperature transmitter converts PT1000 or PT100 RTD inputs to a 4-20mA or MODBUS RS485 signal output.
The OmniAmp RTD transmitter allows easy integration of RTD sensors into existing networks for communication with PLCs or SCADA systems. The OmniAmp RTD is configured using software via a USB interface. For the RS485 versions, configuration is also done via Modbus commands, generated automatically from a SCADA system. Versatile and compact, these transmitters are the ideal solution for adapting sensors to any environment.
| Output: | 4 to 20 mA or 20 to 4 mA, 2-wire type, loop-powered |
| 2 wire RS485 with MODBUS RTU protocol | |
| Inputs: | Pt100 or Pt1000 for 4-20mA O/P or PT100 for RS485 O/P |
| Connection: | 3-wire Pt100 or Pt1000 |
| Typical accuracy: | 0.1 % @ 25 °C (77 °F) |
| Operating temperature: | 40 to 85 °C (-40 to 185 °F) |
| Housing material: | Polyamide, rated IP 67 with cable gland and M12 output connector |
| Output connector: | M12 4 pin male connector, IP67 |

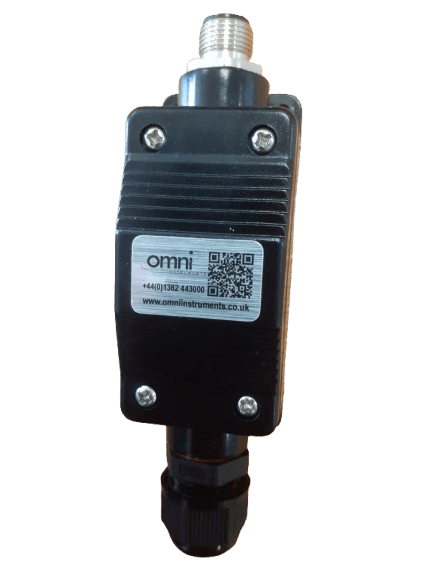

OmniAmp-RTD-MA-M12
£90.00
OmniAmp-RTD-MB-M12
£90.00
