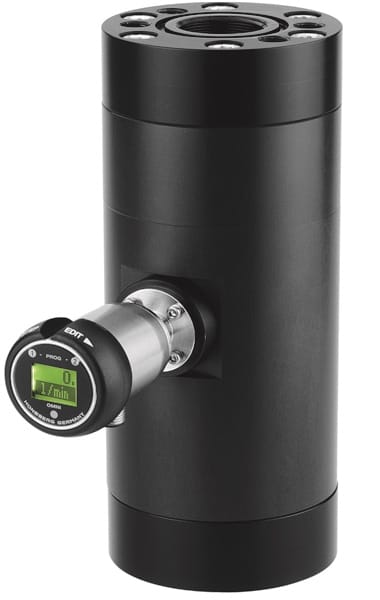

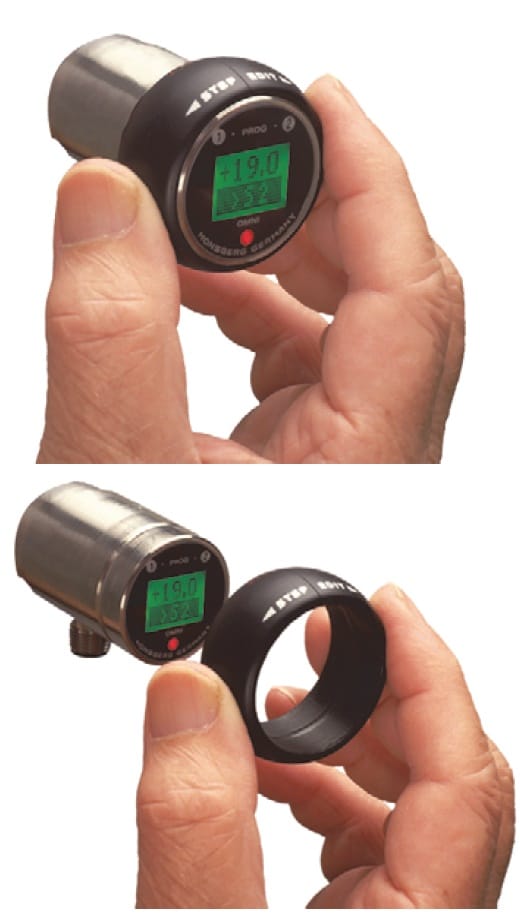

The Omni-VHS Flow Transmitter/Switch is a Volumetric flow sensor designed for measuring flow rates in viscous, lubricant media. It provides a 4(0)-20mA or 0(2)-10V output, along with a digital display for local indication of flow measurement. The Omni-VHS features a programming ring that can be turned to different positions to set or modify parameters or removed to prevent unauthorised adjustments.
The Omni-VHS flow transmitter is designed to monitor viscous media like oil, utilising a volumetric principle with two interlacing screws driven by the flowing medium to achieve measurements largely independent of viscosity. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an aluminum housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions
| Thread (Female) | DN | Metering range | Connection material | Max Pressure | Seal material | Flow Meter Part Code |
|---|---|---|---|---|---|---|
| 1″ BSP | DN25 | 140l/min | A – Anodised Aluminum | 160 Bar | N – NBR Seals | VHS-025-G-A-O-0140-N-E |
| 1¼” BSP | DN32 | 350l/min | VHS-032-G-A-O-0350-N-E | |||
| 1½” BSP | DN40 | 550l/min | VHS-040-G-A-O-0550-N-E | |||
| 1½” BSP | DN40 | 800l/min | VHS-040-G-A-O-0800-N-E | |||
| 2″ BSP | DN50 | 1000l/min | VHS-050-G-A-O-1000-N-E | |||
| 2″ BSP | DN50 | 1500l/min | VHS-050-G-A-O-1500-N-E | |||
| 2½” BSP | DN65 | 2500l/min | VHS-065-G-A-O-2500-N-E |
VHS Flow meters are available for pressure up to 350 Bar. These would be either Steel Connections, or Aluminium in combination with SAE Flanges, contact us for these options.
| Nominal Width | Output | Electrical Connection | Option 1 | Option 2 | Flow Display Part Code |
|---|---|---|---|---|---|
| DN25 1″ BSP | I – 4-20mA
U – 0-10V |
S – M12 Plug |
H – Gooseneck Model O – Oil Filled Display |
C1 – Instantaneous value display with analogue |
OMNI-VHS-025-I/U-S-H/O-C1 |
| DN32 1¼” BSP | OMNI-VHS-032-I/U-S-H/O-C1 | ||||
| DN40 1½” BSP | OMNI-VHS-040-I/U-S-H/O-C1 | ||||
| DN40 1½” BSP | OMNI-VHS-040-I/U-S-H/O-C1 | ||||
| DN50 2″ BSP | OMNI-VHS-050-I/U-S-H/O-C1 | ||||
| DN50 2″ BSP | OMNI-VHS-050-I/U-S-H/O-C1 | ||||
| DN65 2½” BSP | OMNI-VHS-065-I/U-S-H/O-C1 |
The OMNI-VHS display is also available without an analogue output. This version comes with a preset counter with external reset option, switching output and actual value display. Contact us, if you are interested in this option.
