This low cost clamp on ultrasonic flowmeter is ideal for long-term deployment for flow measurement and closed-pipe applications, such as liquid process control, water flow measurement (hot/chill water, city water, sea water), sewage and sludge measurement, and measurements of oil (crude/diesel/fuel), chemicals (alcohol, acids, etc.), beverage, and many other liquids. Once the sensors are clamped on the pipe using the supplied stainless steel straps it can be programmed in a matter of minutes via the front keypad. In addion to the 4-20mA and pulse outputs the unit can also communicate via GSM modem.

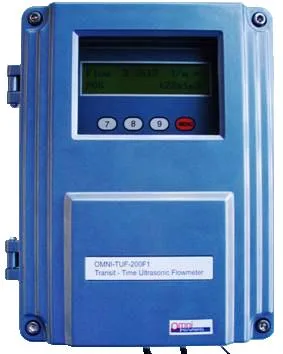

OMNI-TUF-200F Wall Mount Ultrasonic Flowmeter supplied with transducers for pipe sizes 15-100mm or 100 – 700mm, complete with manual and stainless steel straps.
Features:
| Specification | |
| Linearity | 0.5% |
| Repeatability | 0.2% |
| Accuracy | Normally better than ±1%. Could be ±0.5% with on-site calibration. |
| Response Time | 0.5 Seconds |
| Display | Backlit LCD 2×20 Characters. Display instantaneous flow rate, accumulated flow rate (positive, negative and net rates), velocity, time, analog inputs, etc. |
| Units | English (U.S.) or metric |
| Signal Outputs | Current output: 4-20mA or 0-20mA. Impedance 0-1k |
| OCT output: pulse signal for accumulated flow rate (positive, negative and net rates); frequency signal for instantaneous flow rate (0-9,999Hz selectable) | |
| Relay: output 20 signals, such as no signal, reverse flow & more | |
| Signal Inputs | 5 channel analog signal inputs (for signals such as temperature, pressure, liquid level, etc.) |
| Data Logger | Automatically record the following information: 1) The totalizer data of the last 64 days / 64 months / 64 years 2) The power time and corresponding flow rate of the last 64 times power on and off events 3) Allow manual or automatic flow loss compensation 4) The instrument working status of the last 64 days. |
| Computer Interface | RS232 |
| Enclosure | Protection Class: IP65 (NEMA 4X) |
| Liquids | Type: Virtually all commonly used liquids (full pipe) Temperature: 32˚F – 212˚F (0˚C – 100˚C) Concentration: <10,000ppm and small air bubble concentration |
| Pipe | Sizes: 1″ – 240″ Materials: All metals, most plastics, fiber glass, etc. Pipe Length: Better longer than 15D, where D is pipe diameter. If a pump is near, the straight pipe section following the pumps should be > 30D |
| Cable | Shielded transducer cable. Standard length 15ft (5m). Can be extended to 1640ft (500m). Contact the manufacturer for longer cable requirement. Cable should not be laid in parallel with high-voltage power lines, neither should it be close to strong interference source such as power transformers. |
| Power | 8 to 36VDC, 80 to 265VAC optional with PSU |
| Transducer Specifications | |
| Type S1 | Small size transducer (magnetic) For pipe size ½” – 4” |
| Type M1 | Standard medium size transducer (magnetic) For pipe size 2” – 28” |
| Type L1 | Large size transducer (magnetic) For pipe size 11” – 240” |
OMNI-TUF-200F-1-5-ADAR
£930.72
OMNI-TUF-200F-2-5-ADAR
£994.85
OMNI-TUF-200F-3-5-ADAR
£1,054.35
