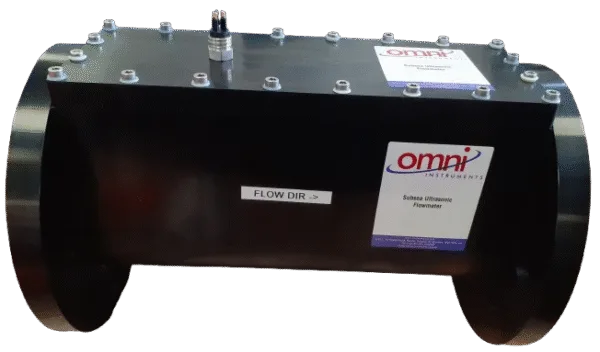

Omni Instruments Subsea Ultrasonic flow meter suitable for measuring the flow of clean fluids such as sea water, oil, or chemicals in subsea pipelines. For 4 inch pipe diameter with ANSI150 4 inch flanges and anodised aluminium body. With 4-20mA output for flow rate. Micro Subcon connecter for power and signal O/P. Power supply 9-36v DC. Depth rated to 3000 meters of seawater. Test certificate supplied extra at cost.
£7,895.00
| Repeatability | Better than 1% |
| Accuracy | Better than +/- 4% |
| Response Time | 0.5 sec |
| Signal Outputs | 4-20mA for flow rate, accuracy 0.1% |
| OCT output: pulse signal for accumulated flow rate (positive, negative and net rates); frequency signal for instantaneous f low rate (0~9,999Hz selectable) | |
| RS485 Output with MODBUS slave support | |
| Housing Material | Anodised aluminium |
| Media Types | Virtually all commonly used liquids (full pipe) |
| Liquid Temperature | -40 to +140 deg C |
| Suspension Concentration | < 1%, particle size smaller than 75um |
| Power Supply | 9-36v DC |
