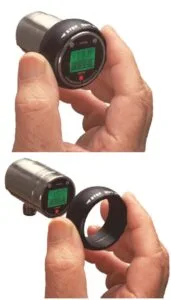

The Omni-HR2VE Flow Transmitter/Switch is a Flow sensor optimised for measuring flow rate of oil using a spring-supported piston with hall effect sensor. It provides a 4(0)-20mA or 0(2)-10V output, along with a digital display for local indication of flow measurement. The Omni-HR2VE features a programming ring that can be turned to different positions to set or modify parameters or removed to prevent unauthorised adjustments.

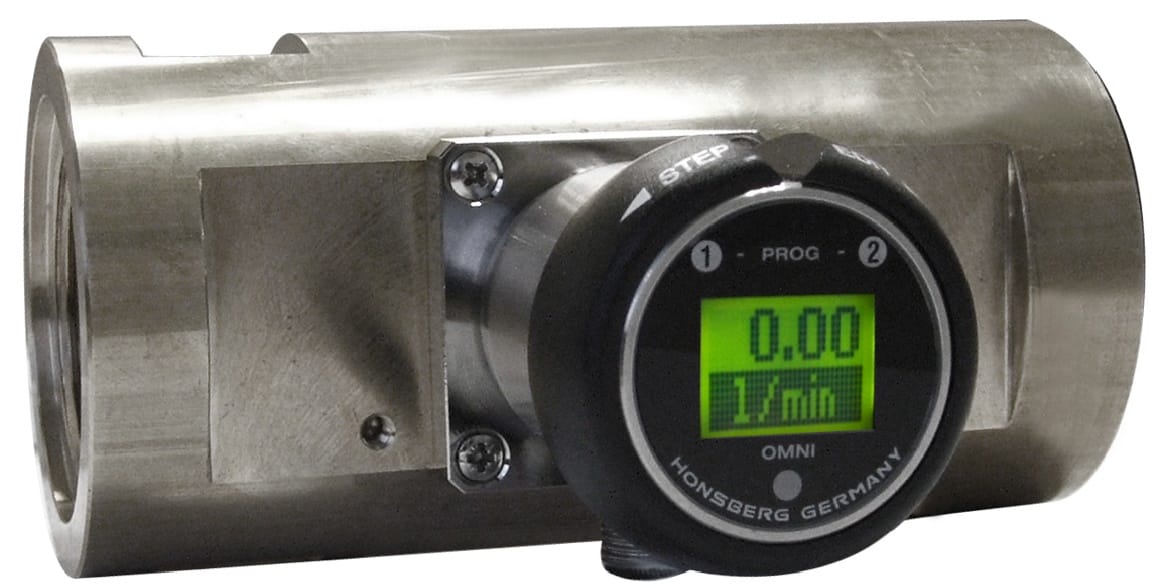

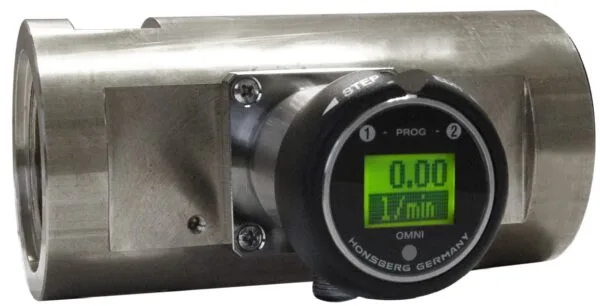

The Omni-HR2VE flow transmitter is designed to monitor fluid media like oil, utilising a spring-supported piston and magnetic triggering a hall effect sensor. It features an easy-to-read backlit graphical LCD display, analogue output (4-20mA or 0-10V), and two programmable switches, operable through a programming ring for settings adjustments and protection against unintended changes. The transmitter’s construction includes a stainless steel case with a hardened mineral glass pane and an aluminum housing, suitable for industrial use and capable of operation and measurement in both forward and reverse flow directions
| Nominal Width | Process Connection | Metering range | Connection material | Flow Meter Part Code |
|---|---|---|---|---|
| 032 | 1¼” BSP | 10-80l/min | M – Brass | HR2VE-032GM080 |
| 032 | 1¼” BSP | 20-120l/min | HR2VE-032GM120 | |
| 032 | 1¼” BSP | 30-140l/min | HR2VE-032GM140 | |
| 032 | 1¼” BSP | 50-160l/min | HR2VE-032GM160 | |
| 032 | 1¼” BSP | 10-80l/min | K – Stainless Steel | HR2VE-032GK080 |
| 032 | 1¼” BSP | 20-120l/min | HR2VE-032GK120 | |
| 032 | 1¼” BSP | 30-140l/min | HR2VE-032GK140 | |
| 032 | 1¼” BSP | 50-160l/min | HR2VE-032GK160 | |
| 040 | 1½” BSP | 10-80l/min | M – Brass | HR2VE-040GM080 |
| 040 | 1½” BSP | 20-120l/min | HR2VE-040GM120 | |
| 040 | 1½” BSP | 30-140l/min | HR2VE-040GM140 | |
| 040 | 1½” BSP | 50-160l/min | HR2VE-040GM160 | |
| 040 | 1½” BSP | 10-80l/min | K – Stainless Steel | HR2VE-040GK080 |
| 040 | 1½” BSP | 20-120l/min | HR2VE-040GK120 | |
| 040 | 1½” BSP | 30-140l/min | HR2VE-040GK140 | |
| 040 | 1½” BSP | 50-160l/min | HR2VE-040GK160 | |
| 050 | 2″ BSP | 10-80l/min | M – Brass | HR2VE-050GM080 |
| 050 | 2″ BSP | 20-120l/min | HR2VE-050GM120 | |
| 050 | 2″ BSP | 30-140l/min | HR2VE-050GM140 | |
| 050 | 2″ BSP | 50-160l/min | HR2VE-050GM160 | |
| 050 | 2″ BSP | 10-80l/min | K – Stainless Steel | HR2VE-050GK080 |
| 050 | 2″ BSP | 20-120l/min | HR2VE-050GK120 | |
| 050 | 2″ BSP | 30-140l/min | HR2VE-050GK140 | |
| 050 | 2″ BSP | 50-160l/min | HR2VE-050GK160 |
| Display | Output | Electrical Connection | Option 1 | Flow Display Part Code |
|---|---|---|---|---|
| OMNI-HR2VE | I – 4-20mA | S – M12 Plug | Blank – Unfilled Display | OMNI-HR2VE-IS |
| D – High Temperature up to 120°C | OMNI-HR2VE-ISD | |||
| H – Gooseneck Model | OMNI-HR2VE-ISH | |||
| O – Oil Filled Display | OMNI-HR2VE-ISO | |||
| U – 0-10V | D – High Temperature up to 120°C | OMNI-HR2VE-ISD | ||
| H – Gooseneck Model | OMNI-HR2VE-ISH | |||
| O – Oil Filled Display | OMNI-HR2VE-ISO |
The OMNI-HR2VE display is available without oil filling, but it is advised to include this to prevent condensation build up, or water ingress into the display, especially in humid conditions.
