Omni C Series

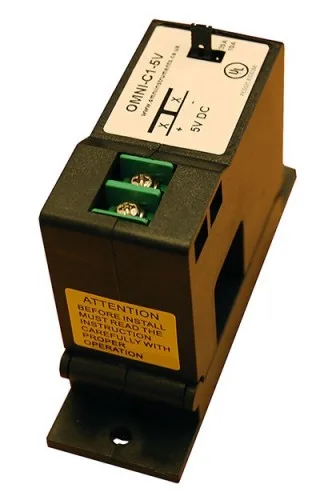

Omni C Series Current Transducers

The Omni C Series are single-phase AC current transducer with a split core sensor. Jumpers allow for the a selectable input range of 0-10, 0-20 and 0-50 Amp or 0-100, 0-150 and 0-200 Amps. Self powered units are available with a 0-5vDC or 0-10vDC output plus a loop powered 4-20mA unit will provide a true RMS output. Transducers have a isolation voltage of 2000V and all model are UL, CE and RoHS certified.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

Omni C Series Current Transducers

Description

Features

  • 3 jumper selectable ranges on each transducer
  • Options for 0-5V, 0-10V or 4-20mA outputs
  • No field adjustment required
  • Average measurement is equivalent to True RMS for pure sine waves
  • Input/Output isolation via current transformer
  • Self-powered transducers with voltage outputs will conserve data logger batteries.
  • Split-core enclosures allow for easy installation.

Specifications

Model FCS521-SP-10V FCS521-SP-5V FCS521-SP-420E FCS2151-SP-10V FCS2151-SP-5V FCS2151-SP-420E
Current Range 0-10, 0-20, 0-50A 0-100, 0-150 or 0-200A
Output 0-10vDC 0-5vDC 4-20mA 0-10vDC 0-5vDC 4-20mA
Power Supply Self Powered 15-42vDC Self Powered 15-42vDC
Accuracy ±1% Full Scale
Response Time 250m/sec (0-90%)
Isolation 2000V
Frequency 40-400Hz
Operating Temp -30 to +70°C (0-95% RH)
Opening Size 20 x 22mm

The Omni-C series of current transducers with multiple input ranges (set by movable jumpers) for maximum flexibility across many current ratings. Jumpers should be placed as per the diagram below to select the appropriate current ranges.

Product

Ref

Price

Product Description

FCS521-SP-5V

£108.93

Omni C Series Current Transducer. Selectable current ranges: 0-10, 0-20 or 0-50A with a 0-5V output, accuracy 1%FS. Suitable for single phase circuits with a frequency 40-400Hz. Isolation voltage 2000V. Split core transducer with a 20 x 22mm conducer hole. Certification: CE, UL and RoHS.
MORE INFO
Add to basket

FCS2151-SP-5V

£108.93

Omni C Series Current Transducer. Selectable current ranges: 0-100, 0-150 or 0-200A with a 0-5V output, accuracy 1%FS. Suitable for single phase circuits with a frequency 40-400Hz. Isolation voltage 2000V. Split core transducer with a 20 x 22mm conducer hole. Certification: CE, UL and RoHS.
MORE INFO
Add to basket

FCS2151-SP-10V

£108.93

Omni C Series Current Transducer. Selectable current ranges: 0-100, 0-150 or 0-200A with a 0-10V output, accuracy 1%FS. Suitable for single phase circuits with a frequency 40-400Hz. Isolation voltage 2000V. Split core transducer with a 20 x 22mm conducer hole. Certification: CE, UL and RoHS.
MORE INFO
Add to basket

FCS2151-SP-420E

£108.93

Omni C Series Current Transducer. Selectable current ranges: 0-100, 0-150 or 0-200A with a 4-20mA output, accuracy 1%FS. Power Supply 15 to 42vDC (loop powered). Suitable for single phase circuits with a frequency 40-400Hz. Isolation voltage 2000V. Split core transducer with a 20 x 22mm conducer hole. Certification: CE, UL and RoHS.
MORE INFO
Add to basket
