Description

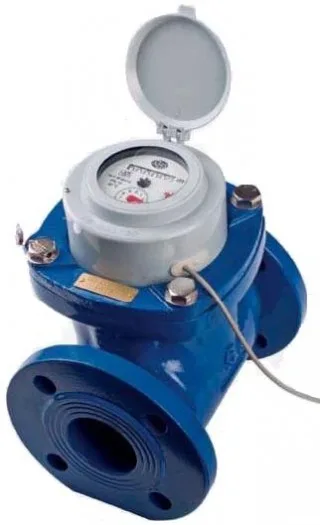

Full bore, helix Woltmann type meter suitable for cold water. It’s impellar rotates on a stainless steel spindle mounted in the measuring chamber. The impeller is made of self-cleaning synthetic resin which like the rest of the meter is BS 6920 tested.The complete metering insert is easily removed from the meter body if damaged in service. The meter is of modern  design and ensures high flow rates with minimum head loss. The Omega-We-Sdc is a “super-dry” dial type meter with a 360° rotating display. The gears and the totalizer operate in a dry Copper-Can compartment, only the helix is submerged in water. Transmission is achieved through a corrosion-proof permanent magnetic drive which is protected by the cast iron meter body from external magnetic fields. A version for warm water up to 90°C is available. The water meter OMEGA WE SDC in pre-equipped for the connection of pulse emitter (reed switch type or opto design for higher frequencies on request. Performance according to MID 2004/22/CE Directive.

WRAS Approval is only available on meters up to and including 250mm.

Due to the large size of these flow meters, these units are not available to purchase online. If you send an e-mail inquiry to info@omni.uk.com, we will be happy to send you a quotation for your requirements.
