Description

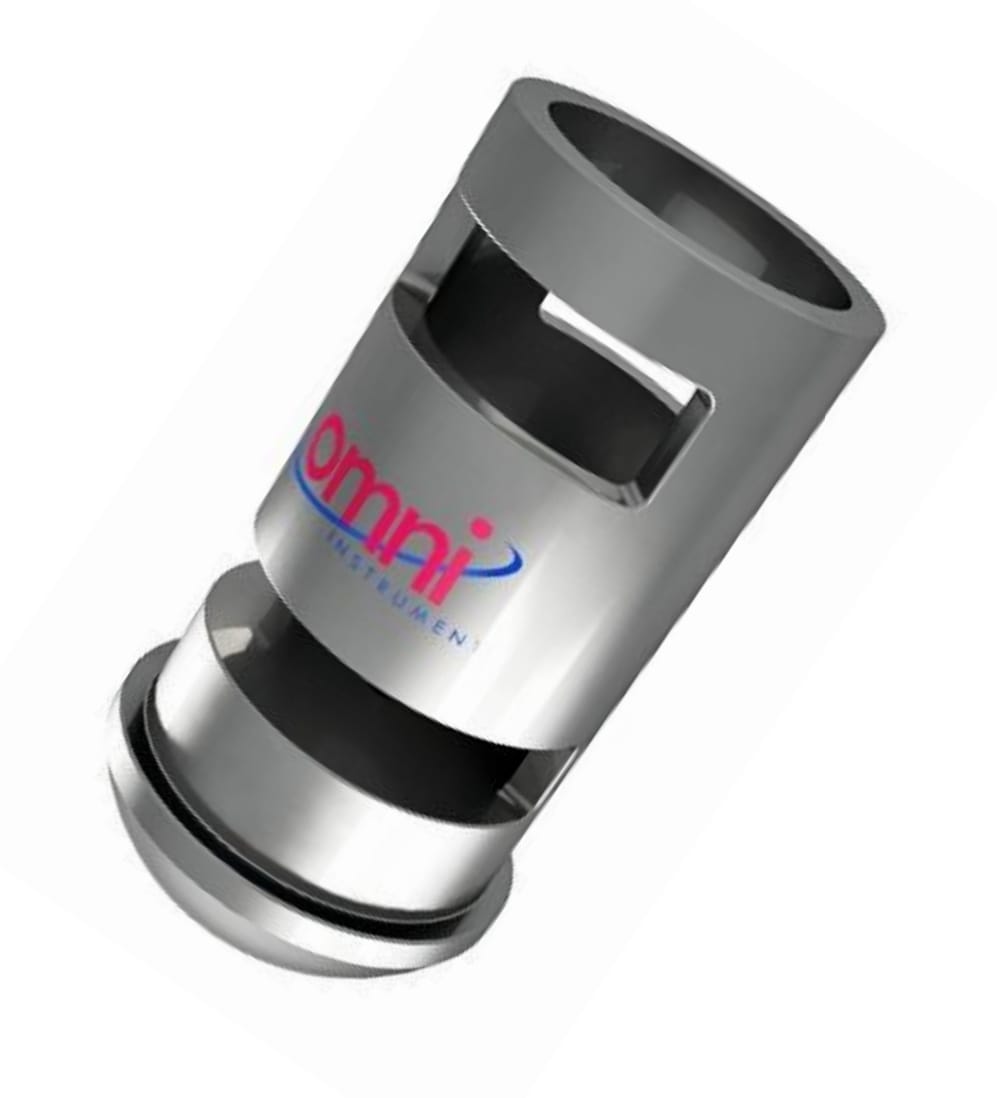

.The OHU-100 Hammer Union Pressure Sensor from Omni Instruments is designed for demanding applications in harsh environments, such as monitoring pipelines up to 1000 Bar.

Features

• Robust Construction: Made from Stainless Steel 316, it offers high strength, anti-corrosion properties against chemicals, and robust protection against adverse weather conditions.
• Operator-Friendly Design: The body features large hand grips for a secure hold, an open tool port for easy access to the pressure transmitter, and a wide pressure contact face for instant response and quick drainage, reducing blockages. Its slimline design and large openings facilitate easy installation and handling, even with gloves.
• Advanced Protection: The unique design provides enhanced protection for the pressure transmitter and electrical connection while maintaining stable and accurate pressure measurement.
• Performance:
  • Pressure Range: Available for various pressure ranges, with the OHU-1000 model specifically having a 1000 Bar range.
  • Accuracy: Typically 0.2% Full Scale (FS) or better.
  • Operating Temperature: Usable range from -40 to 125°C.
  • Response Time: Ultra-fast response time of 1ms across 10-90% of the pressure range.
  • Output: The OHU-1000 model has a 4-20mA output.
  • Temperature Compensation: Built-in for consistent performance.
• Fitting: Uses a 1502 fitting for compatibility with hammer union connections.
• Approvals: Designed for operation in hazardous areas with ATEX
