OEM Compass

OEM Compass

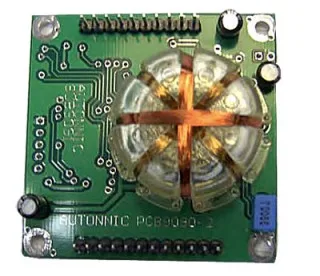

A range of OEM Compasses for manufacturers of equipment which require a fully-interfaced heading derived from the Earth s magnetic field. The A4020 includes auto-calibration and comes in a fixed or floating core to a maximum of 35 or 45°.

View Options

Need help finding the right product?

CONTACT US

Description

FEATURES

  • Complete OEM Compass
  • Compact, Low Cost Compass
  • Remote inputs for calibration and offset
  • Auto-Calibration
  • With Or Without Tilt Compensation to 35° to 45°
  • Aalogue Outputs: Linear or SIN/COS
  • Digital Outputs: NMEA-0183, SPI, FURUNO

Product

Ref

Price

Product Description

COMPASS-A4020-35

£178.00

Compass sensor, with 0-5V output for 0-360 degrees, power supply 7-15vDC at 60mA, operating temperature -20 to +65°C. Tilt compensation to 35°.
MORE INFO
Add to basket

COMPASS-A4020-45

£190.00

Compass sensor, with 0-5V output for 0-360 degrees, power supply 7-15vDC at 60mA, operating temperature -20 to +65°C. Tilt compensation to 45°.
MORE INFO
Add to basket
