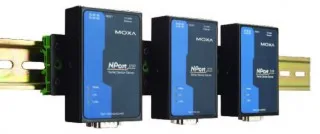

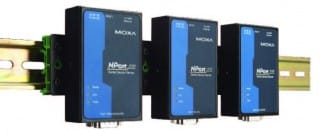

NPort 5100 Series – Serial to Ethernet Converters

Serial to Ethernet converters. NPort 5100 device servers are designed to make serial devices network-ready in an instant. They are suitable for connecting most serial RS232 and RS485 devices to an ethernet local area network (LAN). Cost effective and simple to configure and install. Replacements for DE-211 & DE-311.

Need help finding the right product?

Description

The NPort 5100 series is a LAN device server to facilitate RS232/422/485 communications over a TCP/IP network. A metal case, heavy duty screw terminals and Din rail mounting makes the NPort 5100 series units ideal for demanding industrial environments.

Specifications

Ethernet Interface

Number of Ports: 1

Speed: 10/100 Mbps, auto MDI/MDIX

Connector: 8-pin RJ45

Magnetic Isolation Protection: 1.5 KV built-in

Serial Interface

Number of Ports: 1

Serial Standards: NPort® 5110: RS-232 NPort® 5130: RS-422/485 NPort® 5150: RS-232/422/485

Connector: DB9 male

Serial Line Protection: 15 KV ESD protection for all signals

RS-485 Data Direction Control: ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485: 1 KΩ, 150 KΩ

Serial Communication Parameters

Data Bits: 5, 6, 7, 8

Stop Bits: 1, 1.5, 2

Parity: None, Even, Odd, Space, Mark

Flow Control: RTS/CTS and DTR/DSR (RS-232 only), XON/XOFF

Baudrate: NPort® 5110: 110 bps to 230.4 Kbps NPort® 5130/5150: 50 bps to 921.6 Kbps

Serial Signals

RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422: Tx+, Tx-, Rx+, Rx-, GND

RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w: Data+, Data-, GND

Software

Network Protocols: ICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1/V2c, HTTP, SMTP

Configuration Options: Web Console, Serial Console (NPort 5110/5150 only), Telnet Console, Windows Utility

Windows Real COM Drivers: Windows 95, 98, ME, NT, 2000, XP x86/x64, 2003 x86/x64, Vista x86/x64, 2008 x86/x64, Embedded CE 5.0/6.0, XP Embedded

Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, UnixWare 2.1, SVR 4.2, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i

Linux Real TTY Drivers: Linux kernel 2.4.x, 2.6.x

Physical Characteristics

Housing: Metal

Weight: 340 g

Dimensions: Without ears: 52 x 80 x 22 mm (2.05 x 3.15 x 0.87 in) With ears: 75.2 x 80 x 22 mm (2.96 x 3.15 x 0.87 in)

Environmental Limits

Operating Temperature: Standard Models: 0 to 55°C (32 to 131°F) Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Operating Humidity: 5 to 95% RH

Storage Temperature: -20 to 85°C (-4 to 185°F)

Power Requirements

Input Voltage: 12 to 48 VDC

Power Consumption: NPort® 5110: 128.7 mA @ 12 V, 72 mA @ 24 V NPort® 5130/5150: 200 mA @ 12 V, 106 mA @ 24 V

Regulatory Approvals

EMC: CE (EN55022 Class A, EN55024), FCC Part 15 Subpart B Class A

Safety: UL (UL60950-1), TÜV (EN60950-1)

Reliability

Automatic Reboot Trigger: Built-in WDT (watchdog timer)

MTBF (meantime between failures): NPort® 5110: 279122 hrs NPort® 5130: 246505 hrs NPort® 5150: 246034 hrs

Warranty

Warranty Period: 5 years

Product

Ref

Price

Product Description

NPORT-5110

£135.00

NPort 5110 Series Device Server with 1-port for RS-232 connection, operating temperature 0 to 55 C.

NPORT-5130

£155.00

NPort 5130 Series Device Server with 1-port for RS-422/485 connection, operating temperature 0 to 55 C.

NPORT-5150

£175.00

NPort 5150 Series Device Server with 1-port for RS-232/422/485 connection, operating temperature 0 to 55 C.

DK-35A

£8.00

Mounting Kit for NPort 5100 Series Device Server. Suitable for a 35mm DIN-Rail
