Description

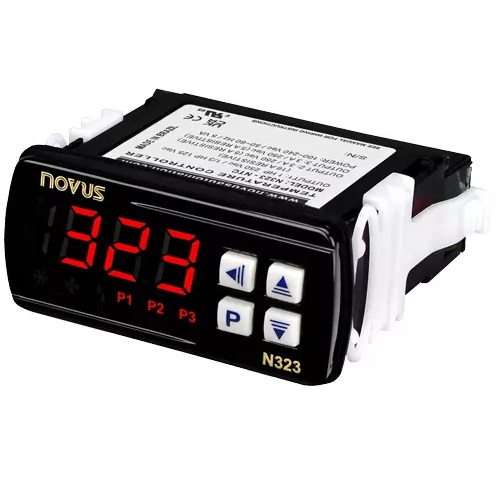

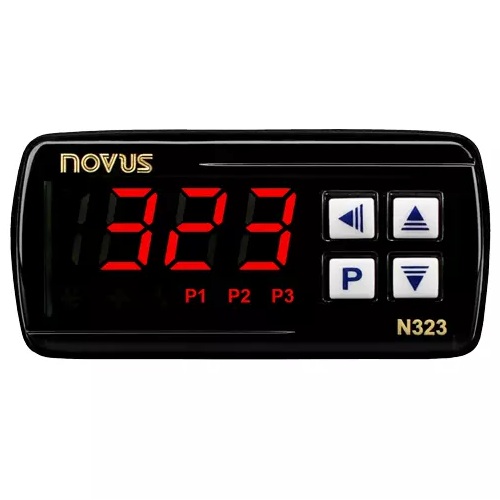

The Novus N323 is a high-performance triple-output digital temperature controller designed for sophisticated thermal management and multi-stage process control. Engineered to handle complex automation tasks within a single compact unit, the N323 features three independent relay outputs: a high-capacity 16A main relay (up to 1 HP) and two secondary 3A auxiliary relays. This versatile configuration allows for advanced control strategies, such as three-stage heating/cooling, or primary temperature regulation combined with independent high and low-level safety alarms. Compatible with a wide array of sensors, including NTC, PT100, and J/K/T thermocouples, the N323 provides industrial-grade precision and a rugged IP65 front panel, making it the definitive choice for laboratory environmental chambers, industrial curing ovens, and multi-zone HVAC systems.

Specifications

• IP65 enclosure frontal protection when installed. Behind panel, IP42.
• Outputs: 1 x SPDT Relay for 250vAC @ 16A, 2 x SPST Relay for 250vAC @ 3A.
• Working temperature: 0 to 40°C @ 20 to 85%RH.
• Power supply: 100-240vAC
• Dimensions: 75 x 33 x 75mm (Width x Height x Depth)
• Panel Cut Out: 70 x 29mm
• Weight: 100g

If the combination you are looking for isn’t listed below, contact us for pricing.
