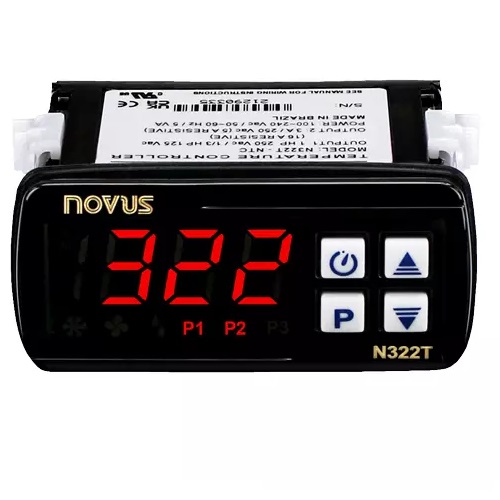

N322T Electronic Thermostat

N322T Electronic Thermostat

Electronic thermostat for heating and refrigeration purposes with timer support. It has Pt1000, thermistor NTC, PTC or J thermocouples inputs available. Allows energy time delay and minimum on/off time settings.

View Options

Need help finding the right product?

CONTACT US

Downloads

Datasheet

N322T Temperature Controller

Description

  • Sensor input: Pt100 (-50 to 300°C), Pt1000 (-200 to 530ºC), Thermocouple J (0 to 600°C) or thermistor (-50 to 120ºC).
  • IP65 enclosure frontal protection
  • Output: 2 relays SPST
  • Resolution: 0,1°C from -19,9 to 99,9°C
  • Accuracy: ± 0,5°C/°F ±1 digit (Pt100/Pt1000/Thermistor) and ±2°C for Thermocouple.
  • Adjustable hysteresis
  • Sampling: 1,5 per second
  • Working temperature: 0 to 50°C
  • Power supply: 85-250Vac (internal) or 12-24Vac/dc
  • Digital communication via RS485 with Modbus RTU protocol (optional)
  • Dimensions: 75x33x75mm
