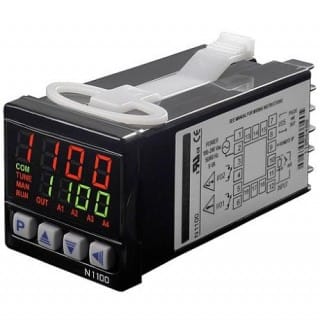

Description

Universal input: Thermocouples J, K, T, S, Pt100, 4-20mA, 50mV, 0-5Vdc without hardware change.
– Outputs: 3A/250Vac Relay, linear 4-20mA and logic pulse for solid state relays available.
– 2 alarms (Relays SPST) more Out linear 4-20mA or logic pulse (standard).
– Up to 2 time relays, 0 to 6500 seconds.
– Input resolution: 12,000 levels
– Power supply: 85-264Vac
– PV or SP retransmission in 4 to 20mA.
– Bumpless Auto/Manual function.
– Remote setpoint input (4 to 20mA)
– Programmable soft start (0 to 9999 sec.)
– Ramp and soak: 7 seven-segment profiles or 1 forty nine-segment profile with events.
– PID auto tuning.
– Front panel: IP65, Polycarbonate UL94 V-2.
– Back panel: IP30, ABS+PC UL94 V-0.
– 48 x 48 x 106 mm size.
– Special Output for heating and refrigeration (HC Model).

OPTIONAL
– RS-485, MODBUS protocol, 19200 bps.
– Third relay (SPDT) or open collector.
– Heater break detection.
– Power Supply: 24Vdc/ac
