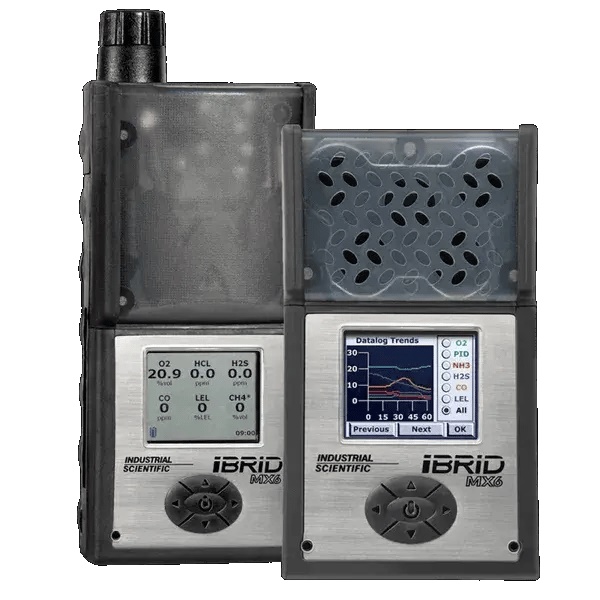

MX6 iBrid Gas Detector

Description

Features

  • 24 “Plug-and-Play” field-replaceable sensors including PID and Infrared options
  • Up to 6 gases monitored simultaneously
  • Simple, user-friendly, customisable, menu-driven navigation
  • Five-way navigation button
  • Durable, concussion-proof overmould
  • Optional integral sampling pump with strong 30.5 meter (100 feet) sample draw
  • Full-colour graphic LCD is highly visible in a variety of lighting conditions
  • Powerful, 95 dB audible alarm

Specifications

Display/Readout: Colour Graphic Liquid Crystal Display
Power Supply & Run Time: Rechargeable, Extended-Range Lithium-ion Battery Pack (36 hours) without Pump
Rechargeable, Extended-Range Lithium-ion Battery Pack (20 hours) with Pump
Replaceable AA Alkaline Battery Pack (10.5 hours) without Pump
Operating Conditions: -20 to +55°C (4F to 131F) @ 15-95%RH (Non-Condensing)
Ingress Protection: IP64
ATEX Certification: Ex ia IIC T4 Ga; II 1G (or Ex d ia IIC T4 Gb IR sensor);
Ex ia I; Equipment Group and Category: I M1/II 1G
Case Material: Lexan/ABS/Stainless Steel with protective rubber overmold
Dimensions: 135 x 77 x 48 mm (5.3 x 3.05 x 1.9 in) without Pump
193 x 77 x 56 mm (7.6 x 3.1 x 2.2 in) with Pump
Weight: 409 g (14.4 oz) typical, without Pump
511 g (18.0 oz) typical, with Pump



Gas Detected Range Resolution Cell Type
Combustible Gas 0-100% LEL 1% Catalytic Bead
Methane 0-5% Volume 0.01% Catalytic Bead
Ammonia 0-500 ppm 1 Electrochemical
Carbon Monoxide 0-1,500 ppm 1 Electrochemical
Carbon Monoxide (High Range) 0-9,999 ppm 1 Electrochemical
Carbon Monoxide/Hydrogen Low 0-1,000 ppm 1 Electrochemical
Chlorine 0-50 ppm 0.1 Electrochemical
Carbon Dioxide 0-1 ppm 0.01 Electrochemical
Carbon Monoxide/
Hydrogen Sulphide (COSH)		 CO: 0-1,500 ppm
H2S: 0-500 ppm		 1
0.01		 Electrochemical
Hydrogen 0-2,000 ppm 1 Electrochemical
Hydrogen Chloride 0-30 ppm 0.1 Electrochemical
Hydrogen Cyanide 0-30 ppm 0.1 Electrochemical
Hydrogen Sulphide 0-500 ppm 0.1 Electrochemical
Nitric Oxide 0-1,000 ppm 1 Electrochemical
Nitrogen Dioxide 0-150 ppm 0.1 Electrochemical
Oxygen 0-30% Volume 0.1% Electrochemical
Phosphine 0-5 ppm 0.01 Electrochemical
Phosphine (High Range) 0-1,000 ppm 1 Electrochemical
Sulphur Dioxide 0-150 ppm 0.1 Electrochemical
Hydrocarbons 0-100% LEL 1% Infra-Red
Methane (% Volume) 0-100% Volume 1% Infra-Red
Methane (% LEL) 0-100% LEL 1% Infra-Red
Carbon Dioxide 0-5% Volume 0.01% Infra-Red
Volatile Organic Compounds 0-2,000 ppm 0.1 Photoionisation
