Description

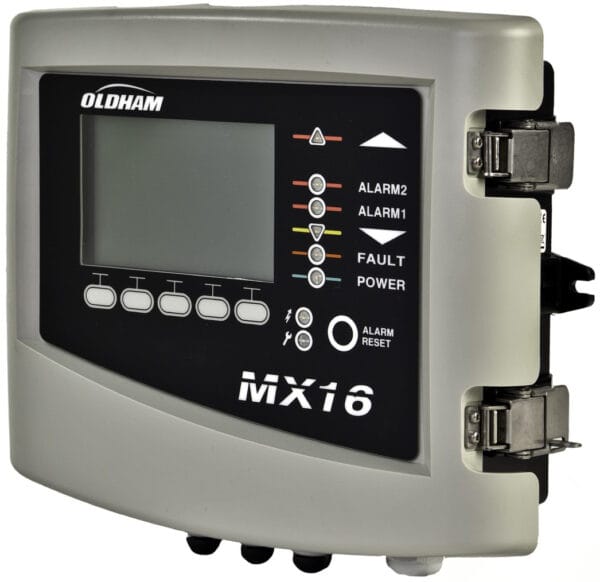

The MX16 controller comes pre-configured from the factory to accept a 4-20mA signal from a suitable Hydrogen (H2) gas detector. The MX16 can provide a 24vDC supply to the gas detector.
Features
- Single channel gas controller
- Low Cost and Easy to Install
- Integrated Relays
- Easy to read large graphic and multi-language LCD back-lit display
- Soft-touch Keys for Embedded Menus
Applications
- Monitoring levels of Oxygen in enclosed areas.
- Gas Leaks in Boiler Rooms
- Gas Releases in Battery Charging Areas
- Water Water Treatment Plants
- Petrochemical Industry
- Laboratories
Specifications
General Specifications
| Dimensions: | 265 x 266 x 96mm |
| Ingress protection | IP55 |
| Cable entries:
|
3 M16 cable glands, 4 to 8 mm² (8 to 11 AWG) outer diameter cable 2 M20 cable glands, 6 to 12 mm² (7 to 9 AWG) outer diameter cable |
| Display:
|
LCD back-lit display + smart keys Display in grayscale in case of fault Bar graph with alarm threshold |
| Visual indicators: | 6 LEDs, 5 LEDs for Detector Status Line, 1 LED fault indicator and 1 LED Power Condition |
| Buttons: | 5 smart keys, 1 audible alarm accept/reset button |
| Operating Environment: | Temp: -20°C to +50°C, Humidity 5 – 95%RH |
| Power Supply: | 100-240vAC 50-60 Hz (35W) |
| Consumption: | 250 mA max (without captor) |
Alarms
| Per channel: |
2 alarm levels (A1, A2) + 1 Fault |
| Programmable thresholds: | Instantaneous or averaged values, falling alarms, manual or automatic acknowledgement |
| On-board relays:
|
2 alarm relays 1 fault relay (non-configurable) Dry contact relay Dry Contact Relay, RCT, 250vAC, 5A |
The MX16 is delivered alone and does not include a detector. WCDCOM16 Software will allow for re-configuration for 4-20mA or Digital Inputs.The MX16 can be used with the OLCT 10N O₂, CO, CO₂, CH₄, LPG and H₂ digital sensor series or any other O₂, CO, CO₂, CH₄, LPG and H₂ analog sensor.
Pre-Configured for Gas Detector
| Gas Detected: | H2 (Hydrogen) |
| Range: | 0-100% LEL (-40 to +50°C) |
| Power Supply: |
24vDC |
Gas Detector Connection Diagram
Please ensure that local regulations are adhered to when installing detectors to the MX16 control panel, with suitable circuit breakers or barriers for the installation.
