General Specifications
| Dimensions: | 265 x 266 x 96mm |
| Ingress protection | IP55 |
| Cable entries:
|
3 M16 cable glands, 4 to 8 mm² (8 to 11 AWG) outer diameter cable 2 M20 cable glands, 6 to 12 mm² (7 to 9 AWG) outer diameter cable |
| Display:
|
LCD back-lit display + smart keys Display in grayscale in case of fault Bar graph with alarm threshold |
| Visual indicators: | 6 LEDs, 5 LEDs for Detector Status Line, 1 LED fault indicator and 1 LED Power Condition |
| Buttons: | 5 smart keys, 1 audible alarm accept/reset button |
| Operating Environment: | Temp: -20°C to +50°C, Humidity 5 – 95%RH |
| Power Supply: | 100-240vAC 50-60 Hz (35W) |
| Consumption: | 250 mA max (without captor) |
Alarms
| Per channel: |
2 alarm levels (A1, A2) + 1 Fault |
| Programmable thresholds: | Instantaneous or averaged values, falling alarms, manual or automatic acknowledgement |
| On-board relays:
|
2 alarm relays 1 fault relay (non-configurable) Dry contact relay Dry Contact Relay, RCT, 250vAC, 5A |

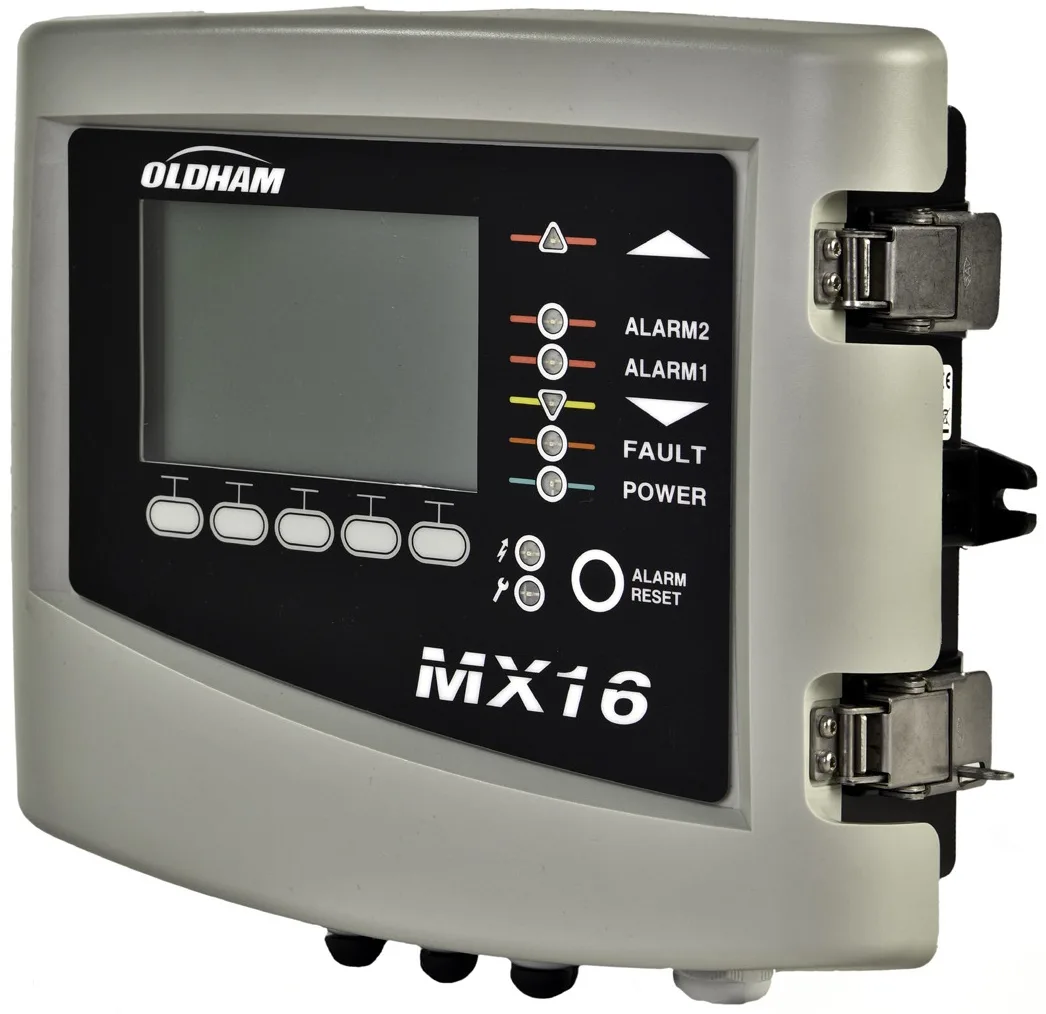

The MX16 is delivered alone and does not include a detector. Requires COM16 to complete configuration for 4-20mA or Digital Inputs.The MX16 can be used with the OLCT 10N Oâ‚‚, CO, COâ‚‚, CHâ‚„, LPG and Hâ‚‚ digital sensor series or any other Oâ‚‚, CO, COâ‚‚, CHâ‚„, LPG and Hâ‚‚ analog sensor.
