Multi-Point Air Velocity Probes & PA267 Differential Pressure Sensor.

Multi-Point Air Velocity Probes & PA267 Differential Pressure Sensor.

A multi-point air velocity probes system using the PA267 differential pressure sensor and AV-EP or AV-MPS air velocity probes. This system can be used to ensure that recommended flow rates for public buildings and industrial plant are achieved. Suitable for flow ranges of 0 – 40m/s.

Need help finding the right product?

CONTACT US

Downloads

Datasheet

PA267 Pressure Transmitter

Datasheet

Multi-Point Air Velocity Probe

Description

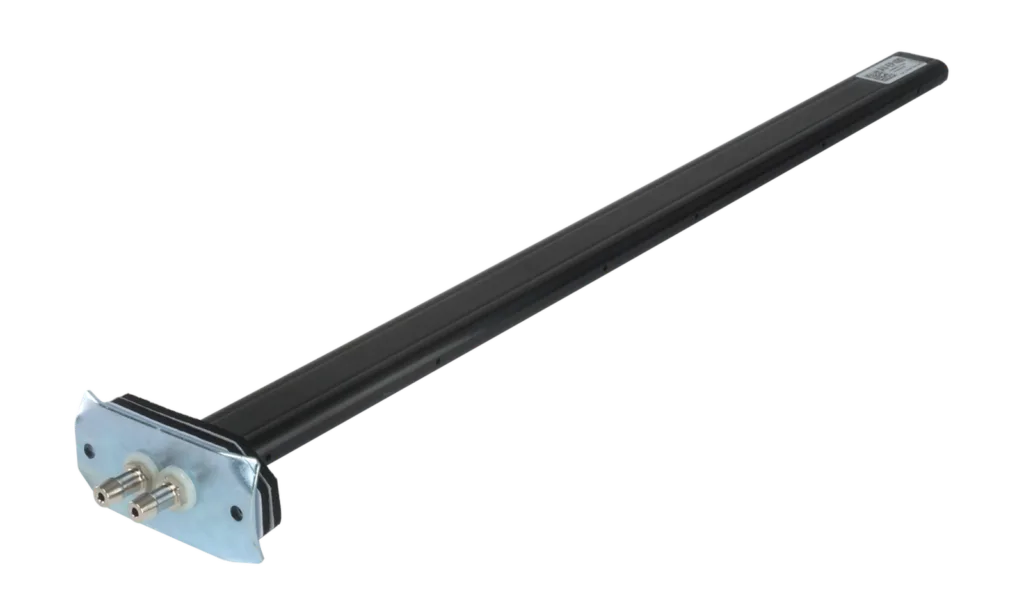

Air Velocity Probes – AV-EP

Features

  • Mounting plate to suit flat, round and oval ducts
  • Double gasket seals the probe to the duct
  • Available in lengths from 100mm to 600mm
  • Push on connectors to suit PA-TUBE-8mm
  • Ideal for small attenuators
  • Perfect for fresh air inlet louvres



Note: The AV-EP must be mounted a minimum of 2m away from any bends, fans, heating batteries etc. in the duct-work. Always point the flow direction arrow on the probe flange into the air flow.

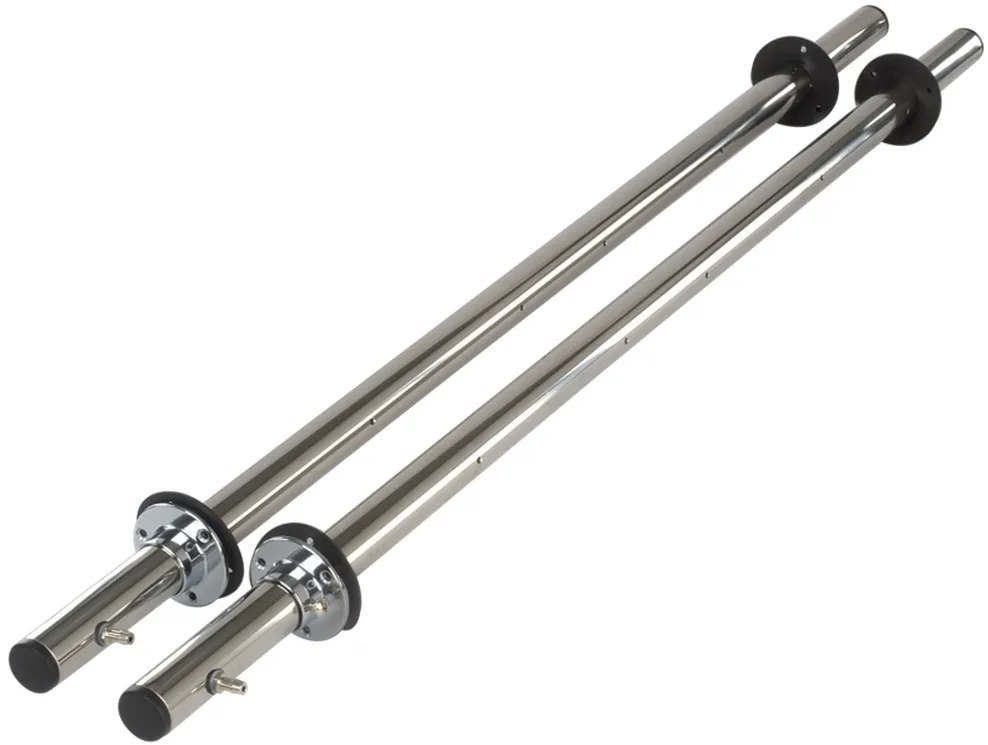

Air Velocity Probes – AV-MPS

Features

  • Mounting plate to suit flat ducts
  • Double gasket seals the probe to the duct
  • Available in lengths from 700mm to 2000mm
  • Push on connectors to suit PA-TUBE-8mm



A Multi-point Air Velocity Sensor for use in larger ducts or where turbulent airflow is likely to be encountered. Stainless steel construction is used for the tubing and all gaskets are provided.

The AV-EP & AV-MPS sensors can be connected to a PA-267 differential pressure sensor of an appropriate range (please refer to datasheet below for further information). The output of both sensors represents the velocity pressure and is defined by the following equation:

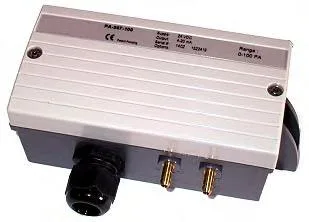

Differential Pressure Sensor – PA-267

Features

  • Two accuracy levels to suit different applications
  • Available in ranges as low as 0-25Pa
  • Integral LCD option
  • IP65 housing with 20mm cable entry and gland
  • Duct fixing kit included



The PA267 is used for accurate air velocity measurement in applications such as variable fan speed control in VAV applications. If the BEMS control system is not capable of calculating the velocity from the differential pressure reading (performing a square root extraction) then an IO-VP/AV module can be used to provide a velocity output to the controller

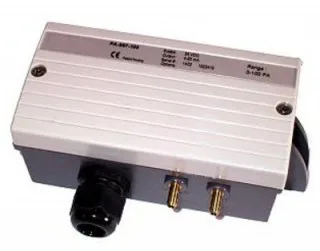

PA267 Differential Pressure Transmitters

£219.23

Field mounting air DP transmitter in IP65 enclosure, range 0 – 25 pascals to 0-1000 pascals, accuracy 0.4% FSD, O/P 4-20mA or 0-10v, power supply 10 – 30 vDC.
MORE INFO
Add to basket

PA267-50

£214.85

PA267 Differential Pressure Transmitter in an IP65 enclosure. Power supply 10-30vDC, range 0-50 pascals with a 4-20mA output and accuracy of 1%FS. STOCK ITEM limited availability, contact us for availability.
MORE INFO
Add to basket
AV-EP Multi-point Air Velocity Probe

AV-EP Multi-point Air Velocity Probes

AV-EP Multi-point Air Velocity Probes (ABS probe) insertion length 100 to 600mm. Suitable for use in flat, round and oval ducts. These probes are not suitable for turbulent airflows.
MORE INFO
Read more
AV-MPS Multi-point Air Velocity Probes

AV-MPS Multi-point Air Velocity Probes

Multi-point Air Velocity Probes (Pair of Stainless Steel probes) insertion length 700 to 2000mm. Suitable for use in larger ducts or where turbulent airflow is likely to be encountered.
MORE INFO
Read more

PA-TUBE-8MM

£34.94

PVC tube 8mm outside diameter x 1.5mm wall, 30m reel. Suitable for connecting the PA267 to AV-EP & AV-MPS probes.
MORE INFO
Add to basket
