Description
Features
- Suitable for measuring various materials such as metals (steel, cast iron, aluminum, copper, etc.), plastics, ceramics, glass, and other good ultrasonic conductors.

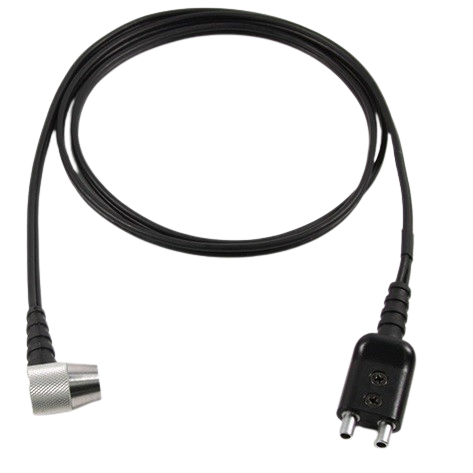

- Dual straight beam probes with different frequencies and crystal sizes are available.
- USB port to download recorded values.
- Features zero calibration, two-point calibration, and an automatic error correction system.
- Can measure known thickness and sound speed to improve measurement accuracy.
- Includes a coupling status indicator showing the coupling status.
- Equipped with an EL backlight for easy use in dimly lit environments.
- A remaining battery indicator displays the remaining power in real time.
- Has auto sleep and auto power off functions to conserve battery life.
- It is small, portable, has high reliability for harsh operating environments, and features anti-vibration, anti-shock, and anti-electromagnetic interference.
Specifications
| Display | 4.5 digits LCD with EL backlight |
| Measuring Range | 0.65 ~ 600mm (in Steel) |
| Through Coating Range | 3-60mm |
| Units | Metric/Imperial selectable |
| Sound Velocity Range | (1000 ~ 9999) m/s |
| Resolution | 0.1/0.01mm |
| Accuracy | ±(0.5% Thickness + 0.01)mm, depends on materials and conditions |
| Measurement Frequency | 7 times per second for single point measurement, 16 times per second for scan mode measurement. |
| Memory | Memory for up to 20 files (up to 100 values for each file) of stored values. |
| Working Modes | Single point measurement and scanning measurement. |
| Power Supply | Two “AA” size, 1.5 Volt alkaline batteries. |
| Operating Time | More than 50 hours (EL backlight off). |
| Communication Interface | USB Port |
| Size | 150 × 74 × 32mm. |
| Weight | 245g |
