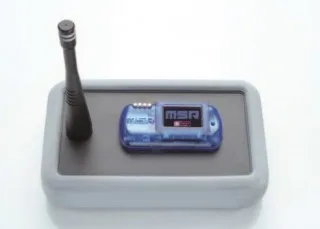

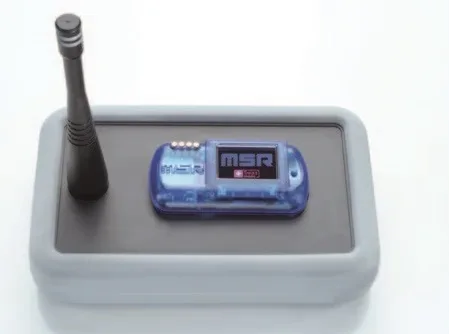

The MSR385WD is a miniature data logger equipped with an 868MHz radio link and OLED graphic display. The MSR385WD data logger, which features an integrated ISM band receiver module, receives and stores the measured data from up to ten transmitter modules (MSR385SM). The MSR385SM transmitter modules can be fitted with internal or external temperature, humidity and air pressure sensors. The transmitter units are available with a rechargeable 260mAh, non-user replaceable 800mAh or replaceable 3.600mAh LiSOCl2 battery and in an IP60, IP67 or IP64 housings. The 868MHz radio link is suitable for up to 500m outdoors and transmitters are suitable for use up to +125°C. A US version with a 915MHz radio link are available on request.
General Specifications
Memory Capacity: Over 1,000,000 measurements.
Key: Set bookmark or start and stop the recording
LED’s: Blue: Record indicator; Red: Alarm Indicator; Yellow: Battery Charging.
Power Supply: Rechargeable Lithium polymer battery rechargeable via USB connection.
Technical Specifications
Measured Parameters:
Working Range:
Temperature: -40 to 125°C
Humidity: 0-100% RH, Temp (-40 to +125°C)
Air Pressure: 10-11000 mBarA, 10-2000 mBarA or 0 to 14 BarA
Accuracy:
Temperature:±0.2°C (-10 to +50°C), ±1°C (-40 to +125°C)
Humidity: ±1.8% RH (10-85% RH, 0 to 40°C), ±4% RH (85-95% RH, 0 to 40°C)
Air Pressure: ±2mBar (750-1100mbar absolute, 0 to +85°C)
PC Software
The integrated software in each unit includes Free Setup, Reader, Viewer and Online software (Windows XP/Vista/7/8) to record and evaluate data. All measurement parameters can be rapidly transferred to a PC via the USB connection both during the measurement operation and once the measurement task has been completed.
MSR385WDB61
£496.64

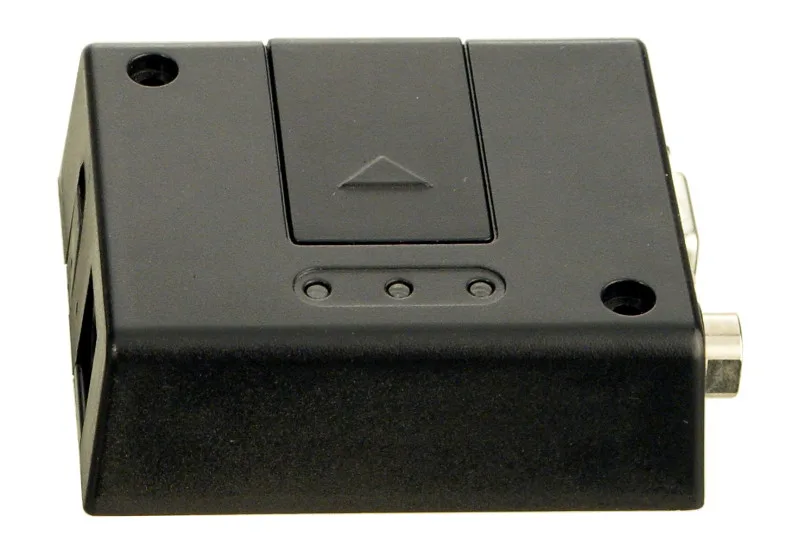

N10109
£211.88

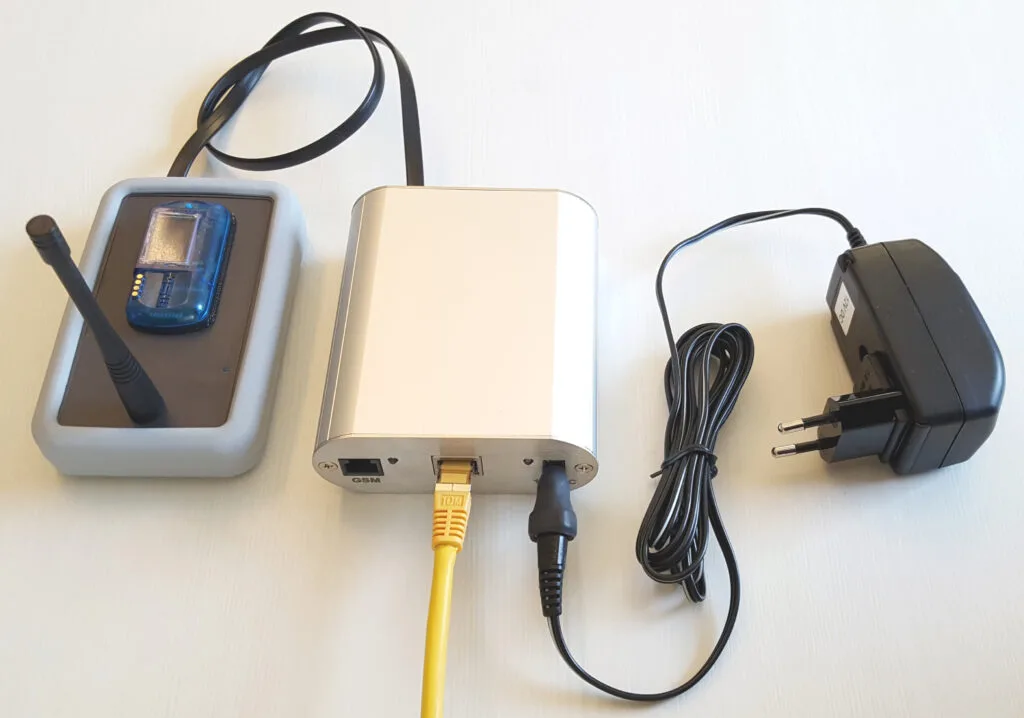

N10110
£235.61
