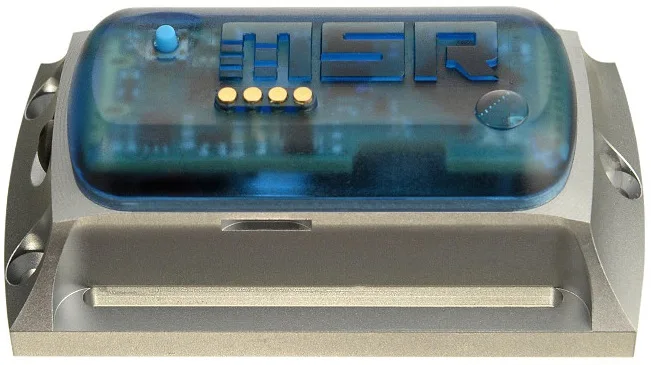

The MSR165 is a miniature universal data logger for measuring and recording 3 axis acceleration up to 15g or 200g, frequency range 1600 Hz. It also has the option of internal temperature, humidity, pressure and light sensors. The units comes in a waterproof housing and an anodised aluminium case with a rechargeable 1,000mAh battery and the option for replaceable Li-SOCl2 batteries. There is also the option of increasing the memory capacity with an SD memory card and a 4 channel analogue input module.
Logger Housing: Waterproof anodised Aluminium case, IP67.
Extra Battery Housing: Splashproof cast Aluminium case.
Size & Weight: 39 x 23 x 72 mm, 69g (122 x 92 x 70mm, 530g with battery housing)
Memory Capacity: Over 2,000,000 measurements, expandable to over 1 billion measurement parameters with optional 4GB microSD card.
Key: Set bookmark or start and stop the record
Power Supply: Rechargeable 1,000mAh Lithium polymer battery rechargeable via USB connection. Suitable for up to 6 months logging.
Replaceable Batteries: 2 x 3.6V Li-SOCl2 7700mAh batteries. Suitable for up to 5 years logging.
Measured Parameters:
Working Range:
Internal Temperature: -20 to 65°C
External Temperature: -55 to 125°C
Humidity (with integrated temperature): 0-100% RH, Temp (-20 to +65°C)
Internal Pressure (with integrated temperature): 0-2000 mbar (Temp -20 to +65°C)
External Pressure (with integrated temperature): 0-14 Bar (Temp -20 to +65°C)
Acceleration: ±15g or ±200g.
Light: 0-65,000 Lux
Accuracy:
Internal Temperature:±0.5°C (-10 to +65°C)
External Temperature: ±0.5°C (-10 to +65°C) and ±2°C (-55 to +125°C)
Humidity: ±2% RH (10-90% RH, 0 to 40°C) (Temp ±0.5°C)
Pressure: ±2.5mbar (750-1100mbar absolute) (Temp ±0.5°C)
External Pressure: ±50mbar (1-10 Bar absolute) (Temp ±0.5°C)
Acceleration (±15g): ±0.15g
Acceleration (±200g): ±2 g (0-15 g), ±5 g (15-100 g), ±10 g (100-200 g) (All at 25°C)
Light: Max. Sensitivity at 500nm
Storage Rate:
Temperature and Humidity: once a second to every 12 hours.
Pressure: once a second to every 12 hours.
Acceleration: 1600Hz to every 12 hours.
Light: once a second to every 12 hours.
The MSR 165 can be supplied with an interface for plugging in a standard SD card (one 4GB microSD card is included). Please note that this expansion slot with plugged-in microSD card only meets the protection category IP60.
MSR ShockViewer PC Software
The MSR165 comes with MSR Shockviewer software. In the MSR ShockViewer, you can examine and export both the data curve and the measuring points of every individual shock.
System requirements: Windows 7 or higher, USB port
