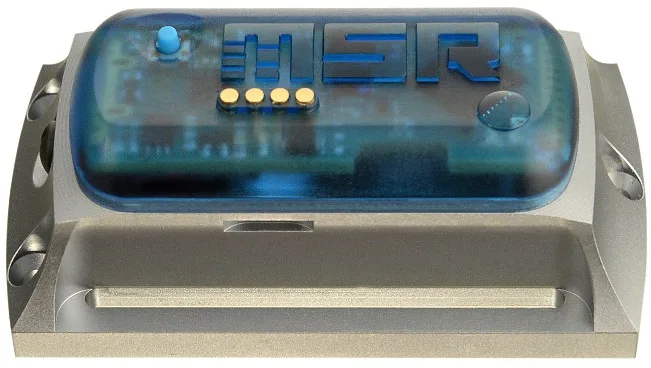

MSR160 Data Logger with 4 Analogue Inputs

The MSR160 is a miniature universal data logger for measuring up to four integrated analogue inputs, a high measurement rate and the optional MicroSD card provides a gigantic memory capacity for over 1 billion parameters. The analogue inputs modules accepts a range of V and mA inputs with a 12 bit resolution. In addition, a multiple output switching power supply is also provided.

Need help finding the right product?

Downloads

MSR160 Data Logger

Description

This highly versatile datalogger has a measurement rate of up to 1000/s. The analogue measuring instrument can be optionally fitted with additional internal or external temperature, humidity and pressure sensors. With the optional 4GB microSD card over one billion measurement parameters can be recorded and saved using the MSR 160. The lightweight device (approx. 80 g) has an anodised aluminium case and an 900mAh rechargeable lithium polymer battery. All saved data can be rapidly transferred to a PC or laptop via the USB interface. The user-friendly data acquisition and analysis software is supplied free along with the datalogger.

Basic specification and technical data for the MSR 160
Analogue inputs: 4 analogue inputs (V or mA, 12 Bit)
(max. 2 external sensors possible)
Measurement/
Storage rate: 1000 /s to every 12 h
Housing: Anodised aluminium case, PC, encapsulated
waterproof (IP67), in blue, anthracite
Size & weight: 39 x 23 x 72 mm, approx. 80 g
Key: Configurable push button functions
Memory capacity: Over 2 000 000 measurement parameters – expandable
to over 1bn measurement parameters with optional
microSD card.
Power supply: • Rechargeable lithium polymer battery 900 mAh
• The battery is charged via the USB connection
Interface: USB
PC software: Free Setup, Reader, Viewer and Online software
(Windows 95/98/ME/NT/2000/XP/Vista/7) for data
acquisition and analysis.
Operating Conditions: • Temperature -20 °C to +65 °C
Storage Conditions:: • Temperature +5 °C to +45° C
(ideal storage condition for the battery)
• 10-95% relative humidity, non-condensing
Standards: The MSR 160 complies with EU-Directives RoHS/WEEE.

Please note that the basic unit comes with the 4 analogue inputs. A maximum of two additional external sensors are possible. Therefore, when using the product selector, you can only select a maximum of two external sensor options for a valid product with internal sensors.
