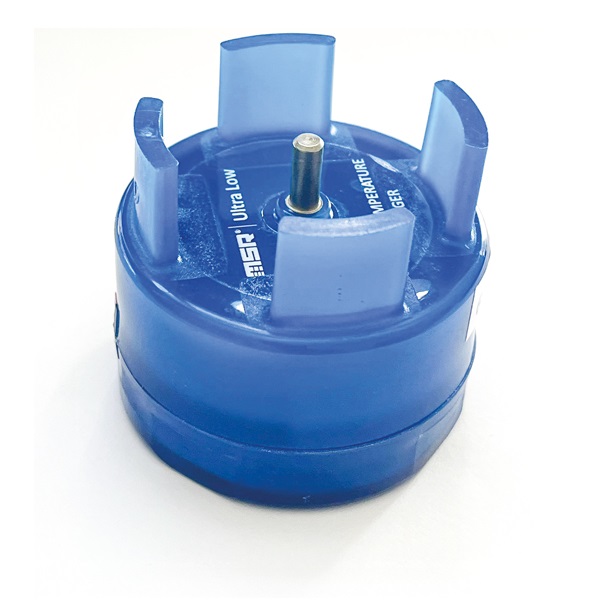

MSR85 Dry Shipper Data Logger

Description

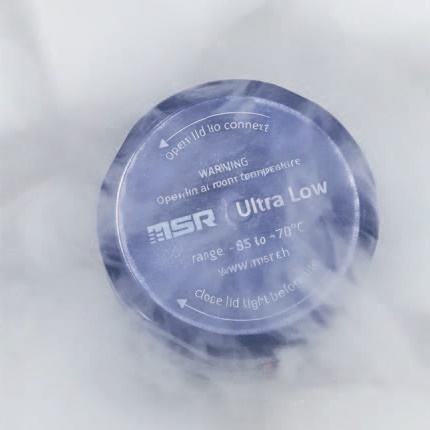

The robust MSR85 data logger ensures reliable temperature monitoring for products transported or stored with dry ice. It is a perfect solution for monitoring the transport of sensitive goods such as pharmaceuticals, vaccines, biological samples, tissues, and enzymes requiring a secure cold chain down to –85 °C. Thanks to its replaceable battery and long operating life, the MSR85 is reusable, cost-effective and sustainable solution for cold chain monitoring.

Set-up is remarkably simple: Before use, configure all required parameters such as alarm limits, measurement interval or time zone using the Configuration Tool and USB interface. Recording is then started conveniently with the push of a button. After transport, recipients can immediately see via the LED whether threshold values have been exceeded. Once recording is stopped by pressing the button, and the logger is connected to a PC via USB, the MSR85 automatically generates tamper-proof PDF and CSV reports with all relevant data.

Feature

  • Reusable PDF data logger for temperature monitoring of cold chains and transports in the dry ice range
  • Housing-mounted PT1000 temperature sensor -85 °C…+70 °C
  • Storage capacity of up to 32 000 measured values
  • Bright LEDs for easy alarm identification
  • Replaceable 3.6 V ½ AA battery
  • Integrated USB-C port – simple PC connection
  • Automatic PDF & CSV reports with measured values and graphs
  • Rugged, temperature-resistant housing (IP67)
  • Configuration Tool provided via an online link
  • Incl. 5-point calibration certificate
  • Easy handling, reliable evaluation
  • Measurement data cannot be manipulated
  • EN 12830 certified for food and pharmaceutical logistics
  • Complies with FDA 21 CFR Part 11 requirements

Specifications

Type: Reusable temperature data logger for ultra-low temperatures.
Temperature range: -85 to +70 °C (-121 to +158 °F)
Resolution: 0.1 °C
Memory capacity: 32,000 measured values (32K – non-volatile)
Logging interval: Selectable options: 1 min, 5 min, 8 min, 10 min, 15 min, 30 min, 1 h, 2 h.
Start delay: 1 min. to 45 days
Alarm limits: Min./max. values
LED: 6 LED indicators: 2 LEDs for recording/stop status; 2 LEDs for high/low alarm status; and 2 LEDs for battery status (full, ¾, ½ or less).
Push buttons: Two secured push buttons to start and stop recording.

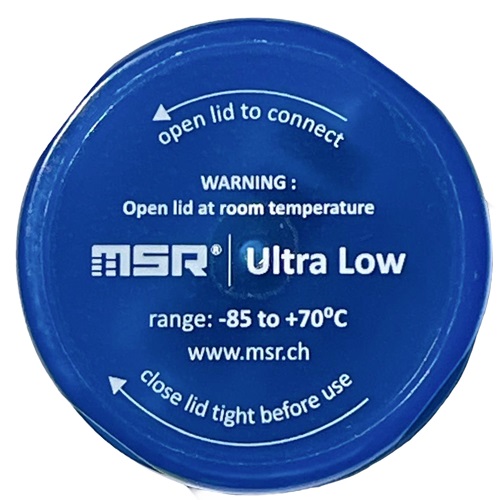

Housing: Robust, temperature-resistant housing (IP67) made of polycarbonate/ABS, food grade.
Dimensions: Ø 50 mm x H 45 mm, approx. 43 g
Battery type: Replaceable 3.6 V ½ AA battery. Recommendation: Type EVE ER14250
Battery life: Approx. 100 days at a logging interval of 10 minutes – depending on the sampling rate as well as operating and storage conditions.
PC interface: USB Type-C
Data report: Automatic creation of Adobe PDF and CSV reports with graphs, measurement tables, and summaries of statistical data (tamper-proof).
Configuration tool: The Configuration Tool is provided via a link.
QA certification: Calibration certificate – traceable nationally and internationally. Each MSR85 data logger is factory-calibrated at five temperature points. A copy of the certificate is additionally stored on the data logger.
System requirements: Windows 7 or higher; Adobe Reader 9.0 or higher
Transport regulations: Safe for air, land, and sea transport; no marking required according to IATA Dangerous Goods Regulations (DGR), 58th Edition 2017; UN3019, Packing Instruction 970 Section II – exempted lithium metal cells and batteries. U.S. Department of Transportation, Lithium Battery Hazardous Material Regulations; 49 CFR Parts 171–180; 2016 International Maritime Dangerous Goods (IMDG), Packing Instruction 903
