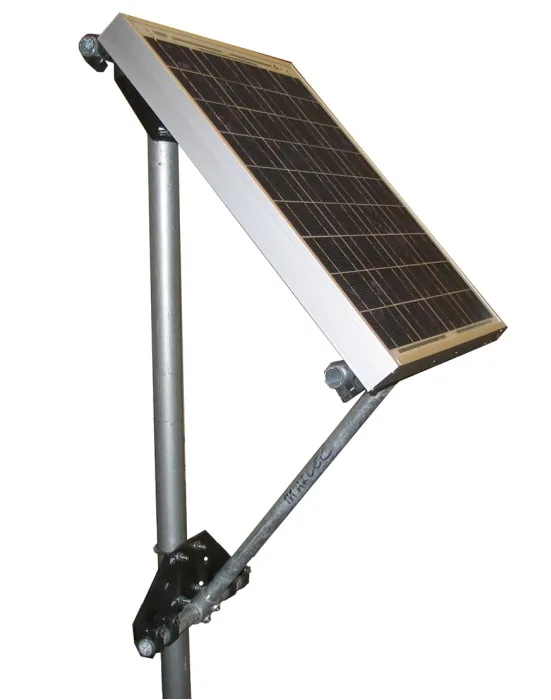

Mounting Kits designed for easy installation of BP/Ameresco and other framed solar modules. Kits include fixing poles for the solar panel and plates for securing the panel frames to solid surfaces or mounting poles. Securing plates are suitable for mounting poles with various diameters from 24mm up to 116mm with custom indentations to accommodate specific size with relevant u-bolts. Tilt angle on the mounting brackets are fully adjustable to allow for optimal solar performance no matter which latitude the mounting kits are used.

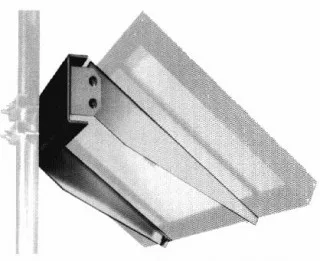

Our solar mounting kits are specifically designed to facilitate installation of single BP/Ameresco Solar framed modules onto wall surfaces or poles.
Versatile and easy to install, allowing for either surface or pole mounting

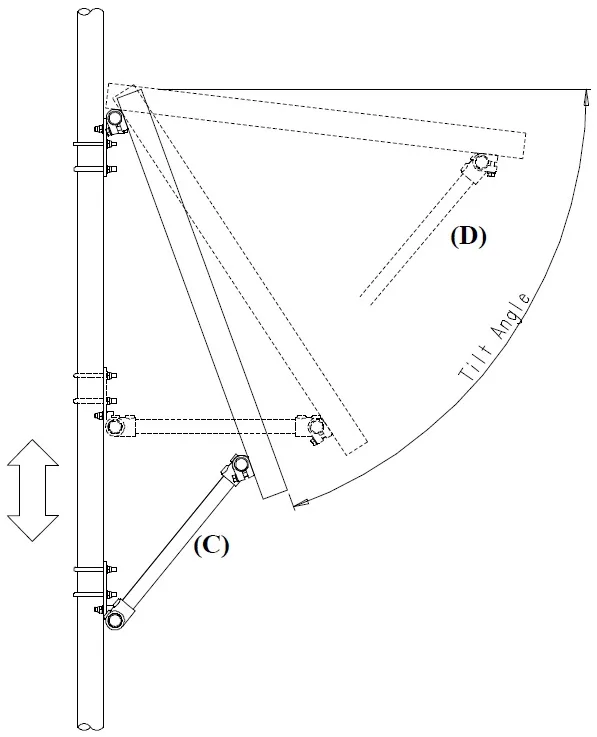

| Site Latitude | Optimum Tilt Angle |
| 0° | 10° |
| 5-20° | Latitude +5° |
| 21-45° | Latitude +10° |
| 46-65° | Latitude + 15° |
| 66-75° | 80° |
U-Bolt Specifications
| U-Bolt Gauge | Arc Diameter | Part Number |
| M8 | 50 mm | 808-017 |
| M8 | 65 mm | 808-027 |
| M12 | 116 mm | 812-006 |
CA-12/0010
£46.21
CA-12/0020
£72.74
CA-12/0030
£72.74
CA-12/0040
£76.67
CA-12/0050
£75.66
