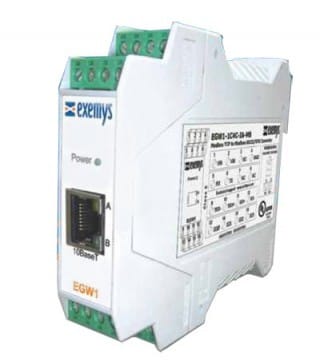

Modbus TCP to DF1 Converter

Modbus TCP to DF1 Converter

This device shortens the gap between your pre-existent Modbus TCP application and any
DF1-enabled device. This is an easy to use Modbus TCP to DF1 Gateway, designed to gain access to a PLC with DF1 connectivity using any Modbus TCP device. Protocol conversion is based on an easy-to-fill set-up web page. Map Input, Output, Integer, Bit and Status files into Discrete Inputs, Coils, Input Registers and Holding Registers.

View Options

Need help finding the right product?

CONTACT US

Description

Features

  • DIN Rail mounting, temperature-resistant Industrial Case.
  • Up to 8 MB TCP concurrent connections.
  • DF1 Full Duplex Protocol.
  • Baud rates up to 19200 bps.
  • Embedded Modbus TCP slave with Digital I/Os and statistics report.
  • Easy to install and set up via a serial console, a Telnet-like console or through a web browser.
  • Wide range power supply 9-26VAC or 9-30VDC.
  • Device search utility for instant detection of the device.

Product

Ref

Price

Product Description

EGW1-MB-HT HART to Modbus TCP/RTU/ASCII Converter

EGW1-110-1-IA3-MB-HT

£495.12

EGW1 – HART to Modbus ASCII, RTU, TCP Protocol Converter. 1 HART ports, 1 x RS232, 1 isolated RS485 Serial Port and 1 x Ethernet Port 10/100Mbps. DIN Rail mounted industrial enclosure with terminal blocks. Power supply: 10-30vDC, consumption 80mA @ 12vDC. Dimensions: 100 x 22.5 x 112mm. Operating Temperature: -15 to 65°C.
MORE INFO
Add to basket
