Description

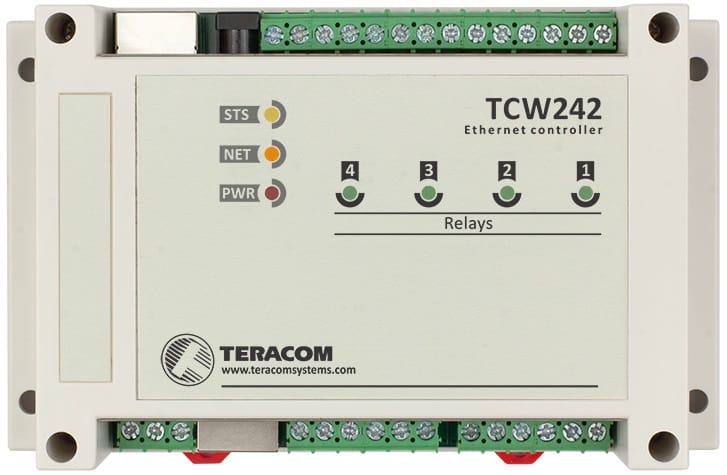

The TCW242 is an industrial-grade Internet of Things (IoT) module designed for advanced monitoring and control in industrial applications. Featuring Ethernet connectivity and data logging, it offers flexible input options including 4 digital inputs, 4 analogue inputs (configurable for 0-20mA or 0-10V), and an RS-485 interface for connecting up to 24 Modbus RTU sensors. The device also includes 4 built-in relays and supports up to 24 Modbus RTU controlled relays, enabling comprehensive control capabilities.

Beyond its extensive monitoring, the TCW242 provides robust alarm functionality, allowing for 24 independent alarms with customisable states, limits, and hysteresis, offering visual indication on the monitoring page. It supports various M2M communication protocols such as SNMP, HTTP API, Modbus TCP/IP, and MQTT, ensuring seamless integration with other industrial systems for diverse data analysis and control needs. Overall, the TCW242 is a powerful and versatile solution for industrial IoT applications.

Features

• Ethernet connectivity at 10/100 Mbps with automatic cable detection
• HTTP/HTTPS server support
• Web-based configuration and control with password protection

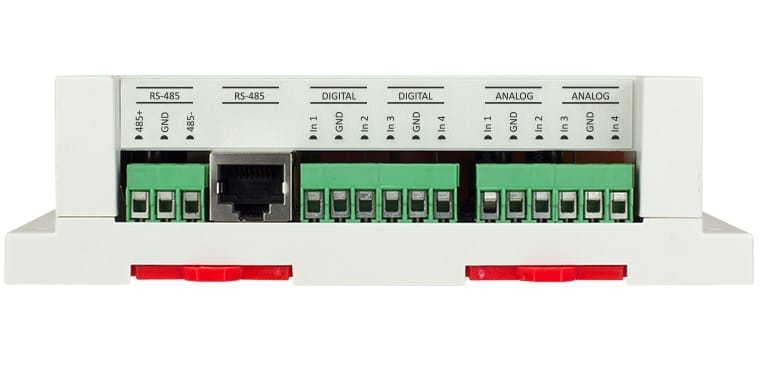

• 4 digital inputs for dry contacts
• 4 analog inputs with 0-10V and 0-20mA options

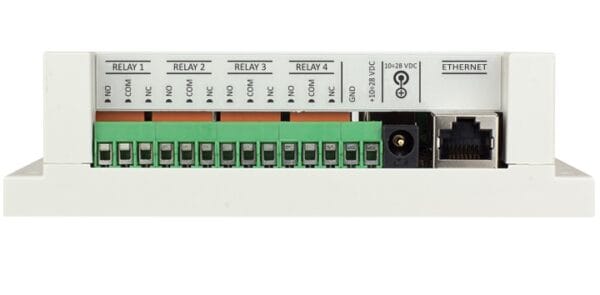

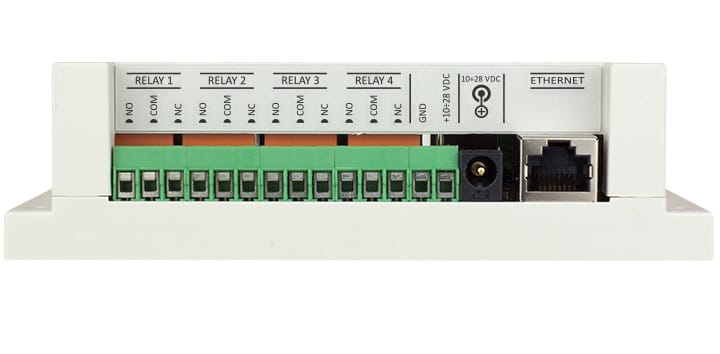

• 4 relays with NO/NC contacts, plus support for up to 24 Modbus RTU relays

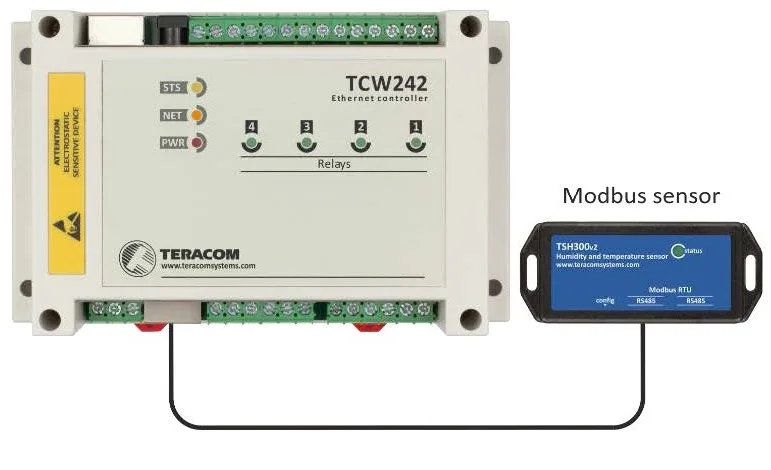

• Modbus RTU for up to 24 sensors (registers)
• Monitor up to 24 channels
• Set up to 24 independent alarms
• SNMPv3 protocol support
• Alarm notifications via SNMP traps
• HTTP API commands
• Periodical HTTP/HTTPS POST of XML/JSON status files for client-server systems
• Modbus TCP/IP protocol support
• MQTT 3.1.1 protocol support
• Dynamic DNS with DynDNS, No-IP, and DNS-O-Matic support
• NTP protocol support
• Data logging capacity for up to 70,000 records
• Schedule single or repeating tasks
• Custom functions available
• ICMP Ping Watchdogs
• Mounts on DIN rail
• Option to backup and restore settings;

Applications

• Remote monitoring and control of industrial machinery and equipment
• Adaptive maintenance for industrial equipment
• Real-time monitoring and control of industrial production lines
• Remote monitoring and management of renewable energy systems such as wind farms and solar panels
• Environmental monitoring in industrial settings such as greenhouses and water stations
• Industrial monitoring and control
• Safety and security monitoring in industrial facilities and remote locations
