MINIVLS-313

MiniVLS 313 Optical Speed Sensor with USB Connectivity. Overall speed range 3-99,999 RPM. Red Laser class II 635nm Light Source, Optical Range: 50 – 2,000mm, Optical Angle: up to ±80°. Compatible with Android Smartphones and Tablets with various USB connection options. Supplied with Sensor, reflective tape, USB Type C Male to USB2.0 Type A Female socket adaptor, USB 2.0 to Mini-B 5 pin cable, OTG USB On The Go Host Adapter cable USB A Female to Micro B Black and Calibration Certificate.

£487.50

Need help finding the right product?

Downloads

Description

Features

  • Pocket Sized Instrument: The size of USB-Tacho is a small and compact handheld Tachometer, at just 20mm x 65mm, see Specifications.
  • Data Save: All the measured data can be saved to a smartphone and tablet.
  • Sampling Time Option: From 0.1s to 5s sampling time can be chosen based on measurement requirement.
  • No Batteries are Required: The Sensor is powered by the smartphone and tablet, no batteries are required to operate the Sensor.
  • Multiple Units Option: Different measuring units can be chosen including rps, rpm, meter/minute etc.
  • Diameter Setting: The diameter can be adjusted depending on measured wheel for linear speed measurement without the need of a contact adapter.

Specifications

Model: MiniVLS 313
Optical Range: 50 – 2000mm
Overall Angle: ±80° degree to reflective marker
Light Sources: Red spot Laser Class II 635nm
Speed Ranges: Range: 3-99,999RPM
Resolution: 0.001 RPM
Baud Rate: 115,200
USB Connection:
Various USB options
Power Supply: Via USB Connection
Time Base: 0.1 to 5 seconds (adjustable)
Dimensions: Length 65 mm x Dia 20mm

Scope of Supply

  • Instruction Manual
  • MiniVLS 313 Speed Sensor USB Laser Tachometer
  • Reflective Tape
  • Certificate of Calibration
  • USB 3.1 Type C Male to USB 2.0 Type A Female Socket Adapter with OTG
  • OTG USB On The Go Host Adapter Cable USB A Female to Micro B Black
  • USB 2.0 to mini-B 5 pin Cable

Optional Accessories must be ordered separately for the MiniVLS Sensors

MiniVLS 313 Google Play Android AppDownload and Install the Android APP from Google Play by clicking the image on the right. Your smartphone must support USB on-the-go function

Alternatively, software is available to operate the MiniVLS 313 USB on a laptop or PC running Windows.

VLS-RT5

£45.00

Reflective tape for VLS optical sensor. 25mm x 5m reel.

MVLS-BR1

£70.00

Mounting Bracket for MiniVLS Optical Speed Sensors.

MVLS-BR2

£90.00

Mounting Bracket & Camera Bush Screw for MiniVLS Optical Speed Sensors.

A2100/39

£165.00

Magnetic Mounting Base for VLS Optical Speed Sensors. Requires an additional MVLS-BR1 or MVLS-BR2 Bracket to mount the MiniVLS Speed Sensors

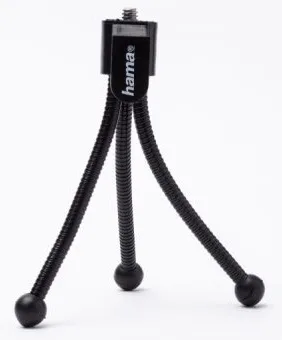

A2100/03

£71.43

125mm Mini Tripod Stand for VLS Optical Speed Sensors. Requires an additional MVLS-BR1 or MVLS-BR2 Bracket to mount the MiniVLS Speed Sensors
