Description

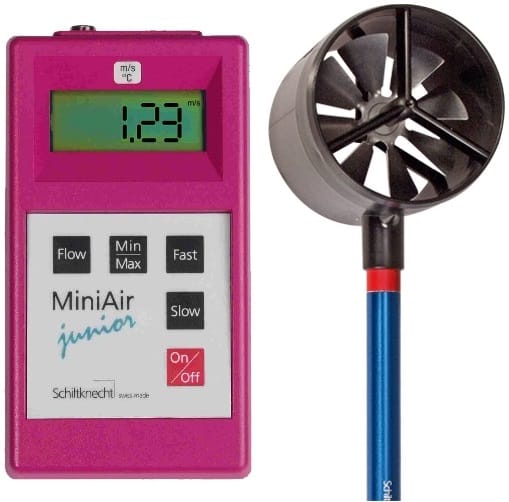

The MiniAir Junior Macro anemometer set consists of a portable vane anemometer and Macro vane anemometer probe for an air flow range of up to 40ms. The MiniAir Junior is a single channel hand held measuring instrument for air flow measurements using the detachable Macro anemometer probe.The supplied probes is a synthetic plastic construction snap head with an Aluminium vane turbine and handle. The probe generates a pulse each time a vane blade passes the probe handle and the MiniAir Junior display converts this output to a flow velocity.
The MiniAir Junior vane anemometers are available in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s and the display may be used with any of the MiniAir Junior Probes. The MiniAir Junior display unit will automatically detect the connected probe during the initial 2 second start up process and adjust the readings to the connected probe. Probes are available with Aluminium vane and handles which are suitable for non-aggressive gases.
Features
- Display suitable for use with all MiniAir Junior flow sensors.
- 4 Digit LCD display
- Flow velocity range 0-40ms
- Instantaneous value measurements
- Minimum, Maximum and Averare values continuously selectable
- 2 Average value measurement intervals: Fast = 6 Secs, Slow = 22 Secs.
- Easy operation by key pad
- Snap head vanes for easy measuring vane replacement, existing calibration retained.
Specifications
MiniAir Junior Display Unit
| Display: | 4 Digit LCD |
| Unit of Measure: | Flow: m/s |
| Power Supply: | 9V LR22 Battery |
| Battery Life: | 12 Hours |
| Case Dimensions: | 80 x 145 x 39mm |
| IP Rating: | IP40 (ABS Plastic) |
| Weight: | 230g |
| Operating Temp: | 0 to 50°C |
| Storage Temp: | -30 to + 80°C |
Micro Vane Anemometer
| Air Probe | Macro |
| Flow Range | 0.3-40m/s |
| Accuracy of Flow | ±1% fs, ±3% rdg |
| Operating Temperature | -30 to +140°C |
| Vane & Shaft Construction | Aluminium or Steel |
| Head Dimensions | ø 85 x 80 mm |
| Handle Diameter | 15mm |
| Probe Length | 235 mm |
| Cable Length | 1.8m |
Snap-Head Replacement
The snap-head fixing system renders it very simple to fit a new impeller to the flow probe: this saves costly non-productive time and in the event of damage to the snap-head enables you to have the probe back in service in a matter of seconds by simply changing the snap-head.
Any snap head replacement should be of the same original size and flow range.
