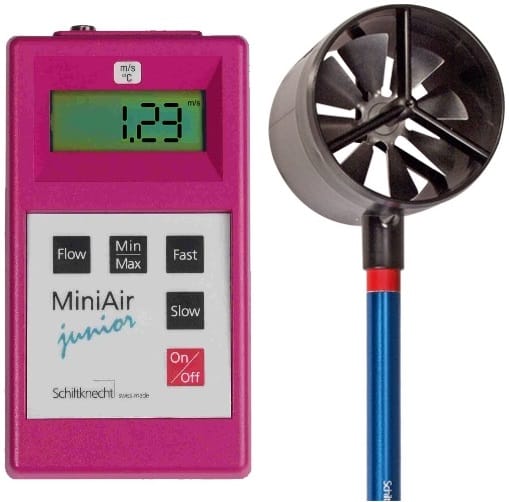

MiniAir Junior Anemometer Display and 20ms Macro Probe. MiniAir Junior 4 Digit LCD display showing min, max and average flow velocity (selectable 6 or 22 sec averaging). Internal 9V LR22 battery suitable for up to 12 hours operation. Dimensions: 80 x 145 x 39mm, weight 230g. Operating temp: 0 to 50°C. MiniAir Junior Macro Vane Anemometer. Plastic measuring head, designed as a snap-on head with aluminium vane and shaft. Suitable for media temperatures up to 140°C. Range 0-20m/s with a ±2% FS accuracy. Probe head dimensions 85mm diameter x 80mm with a probe length of 235mm and 1.8m cable with connector for MiniAir Junior display unit.
£912.12
The MiniAir Junior Macro anemometer set consists of a portable vane anemometer and Macro vane anemometer probe for an air flow range of up to 20ms. The MiniAir Junior is a single channel hand held measuring instrument for air flow measurements using the detachable Macro anemometer probe.The supplied probes is a synthetic plastic construction snap head with an Aluminium vane turbine and handle. The probe generates a pulse each time a vane blade passes the probe handle and the MiniAir Junior display converts this output to a flow velocity.
The MiniAir Junior vane anemometers are available in three different sizes: Micro; Mini; and Macro, with two different flow ranges available for each: 0-20ms; and 0-40m/s and the display may be used with any of the MiniAir Junior Probes. The MiniAir Junior display unit will automatically detect the connected probe during the initial 2 second start up process and adjust the readings to the connected probe. Probes are available with Aluminium vane and handles which are suitable for non-aggressive gases.
MiniAir Junior Display Unit
| Display: | 4 Digit LCD |
| Unit of Measure: | Flow: m/s |
| Power Supply: | 9V LR22 Battery |
| Battery Life: | 12 Hours |
| Case Dimensions: | 80 x 145 x 39mm |
| IP Rating: | IP40 (ABS Plastic) |
| Weight: | 230g |
| Operating Temp: | 0 to 50°C |
| Storage Temp: | -30 to + 80°C |
Micro Vane Anemometer
| Air Probe | Macro |
| Flow Range | 0.15-20m/s |
| Accuracy of Flow | ±1% fs, ±3% rdg |
| Operating Temperature | -30 to +140°C |
| Vane & Shaft Construction | Aluminium or Steel |
| Head Dimensions | ø 85 x 80 mm |
| Handle Diameter | 15mm |
| Probe Length | 235 mm |
| Cable Length | 1.8m |
The snap-head fixing system renders it very simple to fit a new impeller to the flow probe: this saves costly non-productive time and in the event of damage to the snap-head enables you to have the probe back in service in a matter of seconds by simply changing the snap-head.
Any snap head replacement should be of the same original size and flow range.
