MiniAir 64 Micro high temperature Steel vane anemometer with external electronic housing. Air velocity range 0-20m/s with a 2-wire 4-20mA output. Accuracy ±1% of full scale, ±2% of reading. Power supply 9-24vDC. Sensor is supplied with 2.4m cable for connection to the external electronics box and 2m flying lead. Operating range up to +250°C. Electronic housing dimensions: 105 x 20 x 30mm. Sensing head 11mm diameter x 15mm, probe length 165mm. Steel sensing head with Steel blade turbine suitable for aggressive or high temperature gas flow measurements.
£2,429.36

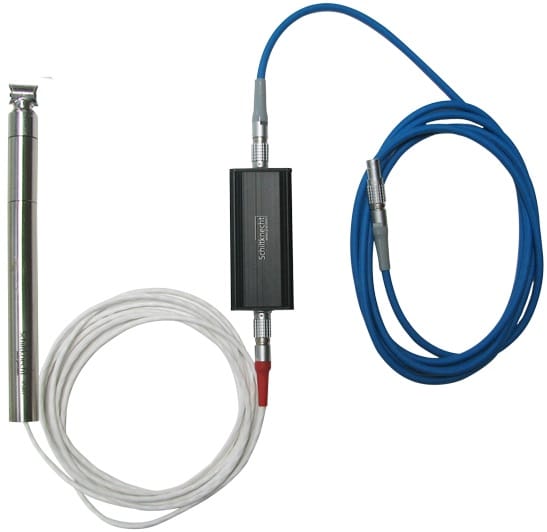

The MINI64442 is a Steel micro snap head with a Steel vane impeller and separate external electronics. The external electronics box provides a linear 4-20mA output signal for a flow velocity range of 0-20m/s. The Micro head is ideal for measuring flow rates in ducting and other small pipe work, or any applications where a probe needs to be inserted and secured in place.
| Air Probe: | MiniAir 64 Micro |
| Range: | 0 – 20 m/s |
| Accuracy: | ±1.0% full scale ±2.0% reading |
| Operating Temp (Sensor): | Up to +250°C |
| Operating Temp (Electronics): | Up to 80°C |
| Power Supply: | 9 – 26vDC |
| Output Signal: | 4-20mA |
| Head Dimensions: | ø 11 x 15 mm |
| Access Opening: | 16mm |
| Snaphead Material: | Synthetic Plastic |
| Vane Material: | Aluminium |
| Probe Length: | 165mm |
| Electronics Dimensions: | 105 x 20 x 30mm |
| Sensor Cable Length: | 2.4m Cable |
| Electronics Cable Length: | 2m Cable |
