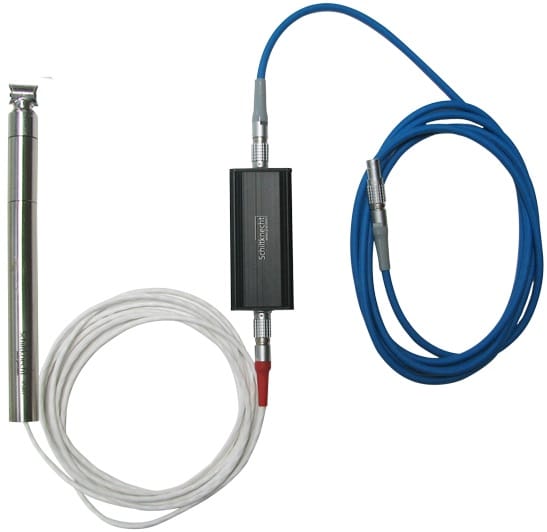

MiniAir 64 Micro Steel vane anemometer with external electronic housing. Air velocity range 0-20m/s with a 2-wire 4-20mA output. Accuracy ±1% of full scale, ±3% of reading. Power supply 9-24vDC. Sensor is supplied with 5m cable for connection to the external electronics box and 2m flying lead. Operating range -10 to +140°C. Electronic housing dimensions: 105 x 20 x 30mm. Sensing head 11mm diameter x 15mm, probe length 165mm. Steel sensing head with Steel blade turbine suitable for aggressive or high temperature gas flow measurements.
£2,124.13
The MINI64342 is a Steel measuring head with a Steel vane impeller and separate external electronics. The external electronics box provides a linear 4-20mA output signal for a flow velocity range of 0-20m/s. The probe has a starting flow velocity of 1.0m/s but can provide readings below this once the impeller has started moving. The Micro head is ideal for measuring flow rates in ducting and other small pipe work, or any applications where a probe needs to be inserted and secured in place.
| Air Probe: | MiniAir 64 Micro |
| Range: | 1.0 – 20 m/s |
| Accuracy: | ±1.0% full scale ±3.0% reading |
| Operating Temp (Sensor): | Up to +140°C |
| Operating Temp (Electronics): | Up to 80°C |
| Power Supply: | 9 – 26vDC |
| Output Signal: | 4-20mA |
| Head Dimensions: | ø 11 x 15 mm |
| Access Opening: | 16mm |
| Snaphead Material: | Synthetic Plastic |
| Vane Material: | Aluminium |
| Probe Length: | 165mm |
| Electronics Dimensions: | 105 x 20 x 30mm |
| Sensor Cable Length: | 5m Cable |
| Electronics Cable Length: | 2m Cable |
