Home / Flow Meters / MINI60562

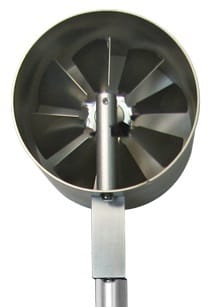

MiniAir 60 Brass Macro Anemometer 20m/s - MINI60562

MINI60562

MiniAir 60 Macro Brass vane anemometer. Sensing head 85mm diameter x 80mm, probe length 245mm. Air velocity range 0-20m/s with a frequency output. Accuracy ±1% of full scale, ±2% of reading. Power supply 4.5-5.5vDC Sensor is supplied with 2m cable. Operating range up to +80°C. Brass sensing head screwed to shaft with Aluminium blade turbine suitable for aggressive gas flow measurements.

£807.50

Need help finding the right product?

CONTACT US
  • Description

Description

The Brass range of MiniAir anemometers are designed to cover the Macro range of anemometers for aggressive gas flows, primarily flows containing solvent vapours, that would otherwise damage the standard plastic anemometer heads. The Steel versions are not available with Macro heads and the Brass construction provides a stiffer construction allowing for a lower start up flow than would be achieved using Steel.

Specifications

Air Probe MiniAir 60
Range 0 – 20 m/s
Operating Temperature up to +80°C
Power Supply 4.5 – 5.5vDC
Output Signal Impulse 0-4vDC / TTL
Head Dimensions ø 85 x 80 mm
Shaft Diameter 15mm
Cable Length from Electronics 2m Cable (1.8m visible)

These units are ideal for corrosive/aggressive air and gas flow measurements where the environment may affect Steel, or where a Macro sized measuring head is required.

SNAPHD132

95.0029

£395.68

Replacement MiniAir Macro snap head with an air velocity range of 20 m/s with an Aluminium turbine. Sensing head 85mm diameter x 80mm. Suitable for use with the following MiniAir probe part numbers: MINI20132, MIEX202132, MINI06132, MINI60132, MINI64132, MINI06232, MINI60232, MINI64232, 95.0014, 95.0388, 95.0347, 95.0348, 95.0349, 95.1155.
MORE INFO
Add to basket
180mm Aluminium Extension Rod for MiniAir Anemometers

98.0030

£51.49

Aluminium extension rod for the MiniAir/Water range of vane/turbine probes. Diameter 15mm and 180mm long extension rod. Rod includes M12 male and female threads for connecting to all MiniAir, MiniWater and ThermoAir probes.
MORE INFO
Add to basket
300mm Aluminium Extension Rod for MiniAir Anemometers

98.0016

£82.00

Aluminium extension rod for the MiniAir/Water range of vane/turbine probes. Diameter 15mm and 300mm long extension rod. Rod includes M12 male and female threads for connecting to all MiniAir, MiniWater and ThermoAir probes.
