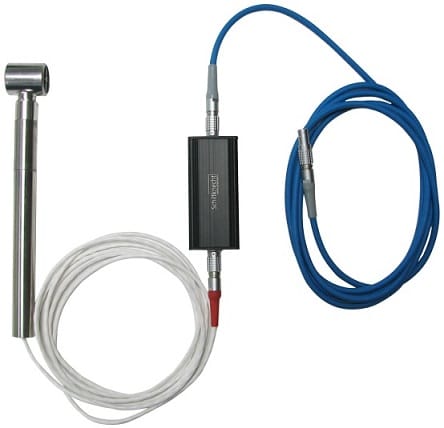

MiniAir 60 Mini high temperature Steel vane anemometer with external electronic housing. Air velocity range 0-40m/s with a frequency output. Accuracy ±1% of full scale, ±2% of reading. Power supply 4.5-5.5vDC. Sensor is supplied with 2.4m cable for connection to the external electronics box and 2m flying lead. Operating range up to +250°C. Electronic housing dimensions: 105 x 20 x 30mm. Sensing head 22mm diameter x 28mm, probe length 175mm. Steel sensing head with Steel blade turbine suitable for aggressive or high temperature gas flow measurements.
£2,297.66
The MINI60454 is a Steel mini measuring head with a Steel vane impeller and separate external electronics. The external electronics box provides a linear frequency pulsed output signal for a flow velocity range of 0-40m/s. The Mini head is only 22mm in diameter, making it ideal for measuring air flow rates in small spaces with an aggressive environments.
| Air Probe: | MiniAir 60 Mini |
| Range: | 0 – 40 m/s |
| Accuracy: | ±1.0% full scale ±2.0% reading |
| Operating Temp (Sensor): | Up to +250°C |
| Operating Temp (Electronics): | Up to 80°C |
| Power Supply: | 4.5-5.5vDC |
| Output Signal: | Pulse |
| at 5vDC w.o. Load | 0-4V |
| TTL Compatible: | Yes |
| Head Dimensions: | ø 22 x 28 mm |
| Access Opening: | 36mm |
| Snaphead Material: | Synthetic Plastic |
| Vane Material: | Aluminium |
| Probe Length: | 175mm |
| Electronics Dimensions: | 105 x 20 x 30mm |
| Sensor Cable Length: | 2.4m Cable |
| Electronics Cable Length: | 2m Cable |
