Description

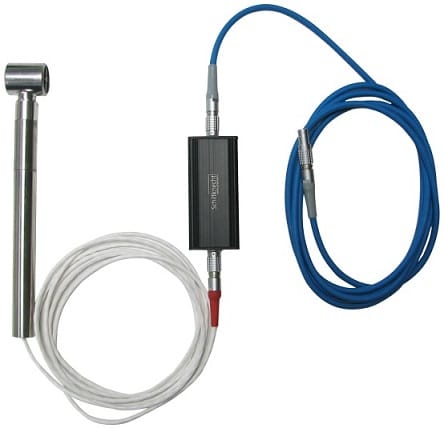

The MINI60354 is a Steel mini measuring head with a Steel vane impeller and separate external electronics. The external electronics box provides a linear frequency pulsed output signal for a flow velocity range of 0-40m/s. The probe has a starting flow velocity of 0.8m/s but can provide readings below this once the impeller has started moving. The Mini head is only 22mm in diameter, making it ideal for measuring air flow rates in small spaces with an aggressive environments.
Specifications
| Air Probe: | MiniAir 60 Mini |
| Range: | 0.8 – 40 m/s |
| Accuracy: | ±1.0% full scale ±2.0% reading |
| Operating Temp (Sensor): | Up to +140°C |
| Operating Temp (Electronics): | Up to 80°C |
| Power Supply: | 4.5-5.5vDC |
| Output Signal: | Pulse |
| at 5vDC w.o. Load | 0-4V |
| TTL Compatible: | Yes |
| Head Dimensions: | ø 22 x 28 mm |
| Access Opening: | 36mm |
| Snaphead Material: | Synthetic Plastic |
| Vane Material: | Aluminium |
| Probe Length: | 175mm |
| Electronics Dimensions: | 105 x 20 x 30mm |
| Sensor Cable Length: | 5m Cable |
| Electronics Cable Length: | 2m Cable |
