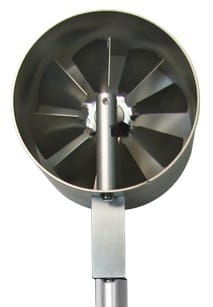

MiniAir 6 Macro Brass vane anemometer. Sensing head 85mm diameter x 80mm, probe length 245mm. Air velocity range 0.2-20m/s with a 0-2V output. Accuracy ±1% of full scale, ±2% of reading. Power supply 6.5-26vDC Sensor is supplied with 2m cable. Operating range up to +80°C. Brass sensing head screwed to shaft with Aluminium blade turbine suitable for aggressive gas flow measurements.
£949.88
The Brass range of MiniAir anemometers are designed to cover the Macro range of anemometers for aggressive gas flows,primarily flows containing solvent fumes, that would otherwise damage the standard plastic anemometer heads. The Steel versions are not available with Macro heads and the Brass construction provides a stiffer construction allowing for a lower start up flow than would be achieved using Steel. The anemometers are available with a pulsed frequency output, a 0-2V or 4-20mA output options.
| Air Probe | MiniAir 6 | MiniAir 60 | MiniAir 64 |
| Range 20m/s | 0 – 20 m/s | ||
| Range 40m/s | 0 – 40 m/s | ||
| Operating Temperature | up to +80°C | ||
| Power Supply | 6.5 – 26vDC | 4.5 – 5.5vDC | 9 – 24vDC |
| Output Signal | 0 – 2V | Impulse 0-4vDC / TTL | 4-20mA |
| Head Dimensions | ø 85 x 80 mm | ||
| Shaft Diameter | 15mm | ||
| Cable Length from Electronics | 2m Cable (1.8m visible) | ||
These units are ideal for corrosive/aggressive air and gas flow measurements where the environment may affect Steel, or where a Macro sized measuring head is required.
95.0029
£395.68
98.0030
£51.49
98.0016
£82.00
