Description

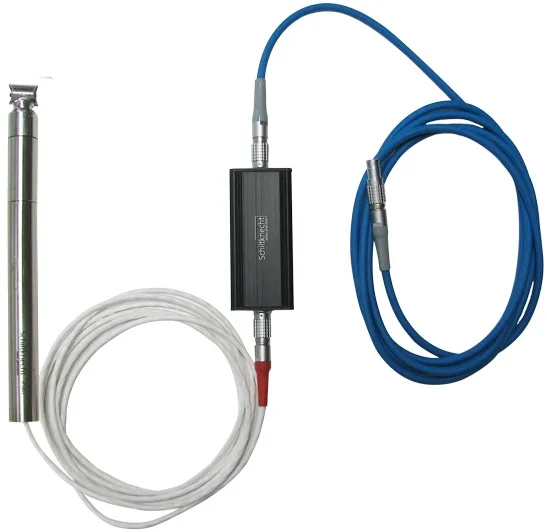

The MINI06344 is a Steel micro snap head with a Steel vane impeller and separate external electronics. The external electronics box provides a linear 0-2V output signal for a flow velocity range of 0-40m/s. The probe has a starting flow velocity of 1.3m/s but can provide readings below this once the impeller has started moving. The Micro head is ideal for measuring flow rates in ducting and other small pipe work, or any applications where a probe needs to be inserted and secured in place.
Specifications
| Air Probe: | MiniAir 6 Micro |
| Range: | 1.3 – 40 m/s |
| Accuracy: | ±1.5% full scale ±3.5% reading |
| Operating Temp (Sensor): | Up to +140°C |
| Operating Temp (Electronics): | Up to 80°C |
| Power Supply: | 9 – 26vDC |
| Output Signal: | 0 – 2V |
| Head Dimensions: | ø 11 x 15 mm |
| Access Opening: | 16mm |
| Snaphead Material: | Synthetic Plastic |
| Vane Material: | Aluminium |
| Probe Length: | 165mm |
| Electronics Dimensions: | 105 x 20 x 30mm |
| Sensor Cable Length: | 5m Cable |
| Electronics Cable Length: | 2m Cable |
