Description

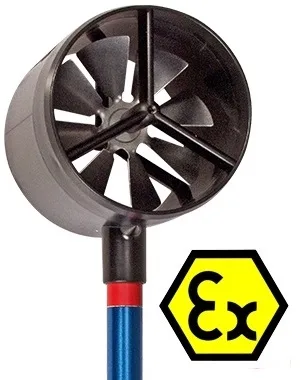

The MIEXJU2134 is a vane anemometer probe suitable for use with the MiniAir Junior Ex handheld display for monitoring the flows of non-aggressive gases in Hazardous Areas. The probe head is a synthetic plastic construction with an Aluminium turbine that generates a frequency output each time a blade passes the probe handle. The frequency of rotation is almost proportional to the air-flow velocity and largely independent of pressure, temperature, density and humidity. The MiniAir Junior converts the rotational frequency into a standard signal and shows the measured value in the display.

The MIEXJU2134 includes the Macro snaphead, which is 85mm in diameter, with a flow range of 0-40m/s. The larger diameter head allows for a lower start up speed and allows the sensor to cover a larger area. The Macro head is ideal for measuring flow rates in open air, or where the air flows may start as low as 0.2m/s. The Mini head require a start up flow rate of 0.4m/s and Micro head requires 0.6m/s.

Snap-Head Replacement

The snap-head fixing system renders it very simple to fit a new impeller to the flow probe: this saves costly non-productive time and in the event of damage to the snap-head enables you to have the probe back in service in a matter of seconds by simply changing the snap-head.

Any replacement snap-head must be an identical size and flow rate to the one removed.

Extension Rods

The extension rods allow the probe handle to be extended to provide a better reach. Each rod includes male and female M12 mounting thread to secure the extension rods to the bottom of the MiniAir probes. Multiple extension rods may be fitted together using the M12 mounting threads. The telescopic extension rod can be adjusted to secure in position from 300mm to 1m in length

MIEXJU2132 is the replacement part for part no. 95.2040.
